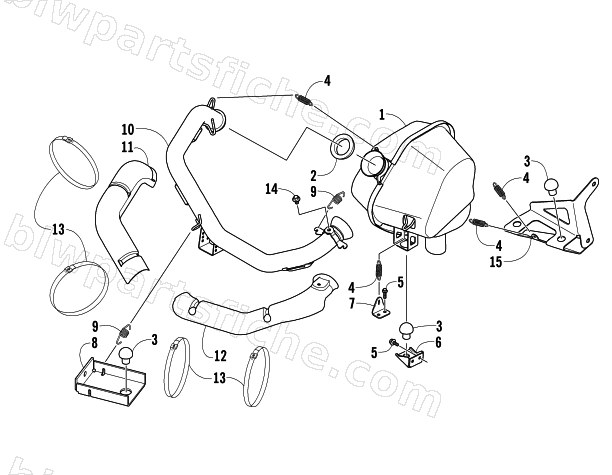

2006 Arctic Cat BEARCAT WIDE TRACK TURBO — EXHAUST ASSEMBLY
2006 BEARCAT WIDE TRACK TURBO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1712-202 | RESONATOR, EXHAUST-ASSY | 1 | $741.95 | |
| 2 | 1612-323 | GASKET, EXH,TAIL PIPE | 1 | $29.95 | |
| 3 | 0612-111 | BUMPER,MOLDED-RUBBER | 1 | $16.49 | |
| 4 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 5 | 8020-037 | SCREW,CAP-HFH 1/4-20 X 0.500 Z&Y | 1 | $1.37 | |
| 6 | 1712-208 | BRKT, RESONATOR MTG-PTD BLK | 1 | $26.95 | |
| 7 | 1712-209 | BRKT, SPRING RETAINING-PTD BLK | 1 | $14.95 | |
| 8 | 1712-046 | BRKT, EXHAUST-PTD BLK | 1 | $22.01 | |
| 9 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 10 | 1712-206 | PIPE, EXHAUST-MFG ASSY | 1 | $402.95 | |
| 11 | 1612-918 | COVER, PIPE-RH | 1 | $90.95 | |
| 12 | 1612-919 | COVER, PIPE- LH | 1 | $90.95 | |
| 13 | 1623-140 | TIE-LOK TIE-.020X3/8X10.00" | 1 | $12.35 | |
| 14 | 1623-514 | BOLT,M6X1.0X10-HIGH TEMP | 1 | $9.95 | |
| 15 | 1712-219 | BRKT, MTG-RES/DROPCASE-PTD BLK | 1 | $49.95 |
