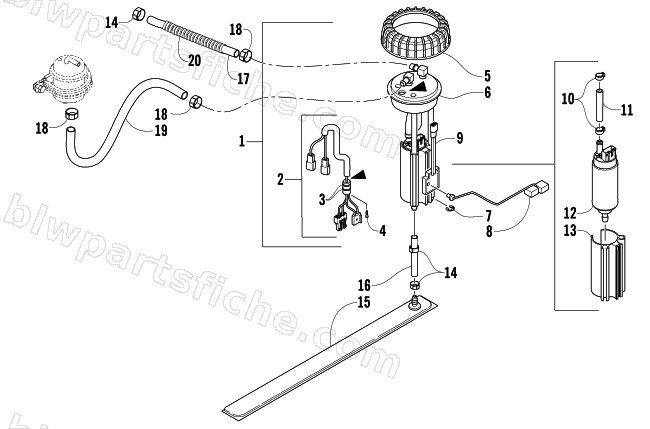

2006 Arctic Cat BEARCAT WIDE TRACK TURBO — FUEL PUMP ASSEMBLY
2006 BEARCAT WIDE TRACK TURBO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-746 | PUMP,FUEL-EFI (PFA-71) | 1 | $546.95 | |
| 2 | 1670-612 | HARNESS,FUEL PUMP-ASSY | 1 | $196.95 | |
| 4 | 1670-412 | SCREW, RETAINING | 1 | $2.95 | |
| 5 | 1670-119 | NUT,RETAINING-FUEL PUMP FLANGE | 1 | $12.95 | |
| 6 | 1670-118 | SEAL,FUEL PUMP FLANGE (MASON) | 1 | $20.63 | |
| 7 | 1670-244 | RING, STUD RETAINER - FUEL PUMP | 1 | $1.95 | |
| 8 | 1670-810 | ARM,FLOAT-ASSY | 1 | $62.95 | |
| 9 | 1670-809 | ELEMENT,FUEL SENSOR - ASSY | 1 | $77.95 | |
| 10 | 1670-520 | CLAMP,HOSE | 1 | $5.78 | |
| 11 | 1670-805 | HOSE,FUEL PUMP | 1 | $45.95 | |
| 12 | 1670-531 | PUMP,FUEL- (V/N F20000107) | 1 | $335.95 | |
| 13 | 1670-413 | HOUSING, FUEL PUMP-SENSOR STYLE | 1 | $75.95 | |
| 14 | 0610-415 | CLAMP,HOSE-10.8 MM TO 13.3 MM | 1 | $3.71 | |
| 15 | 1670-525 | FILTER, FUEL-PICK UP | 1 | $45.95 | |
| 16 | 0610-540 | HOSE, GASLINE-5/16 X 7.75 | 1 | $3.44 | |
| 17 | 0610-513 | HOSE,GASLINE-25' | 1 | $89.95 | |
| 18 | 0610-419 | CLAMP, HOSE (14.5), 12.0 MM TO 14.5 MM | 1 | $1.92 | |
| 19 | 0610-075 | HOSE,GASLINE-10'ROLL | 1 | $150.95 | |
| 20 | 0716-507 | LOOM,HI-TEMP (26" LONG) | 1 | $3.44 |
