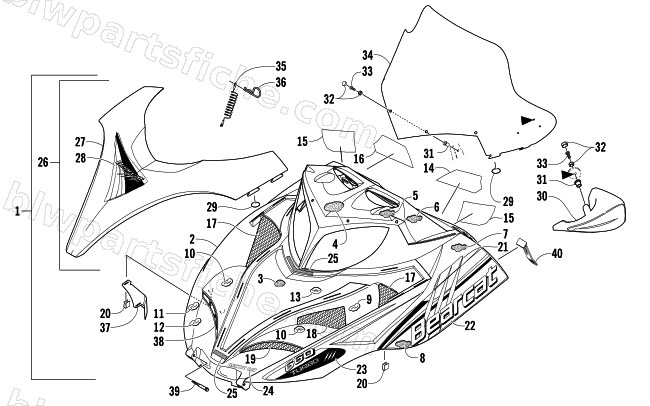

2006 Arctic Cat BEARCAT WIDE TRACK TURBO — HOOD AND WINDSHIELD ASSEMBLY
2006 BEARCAT WIDE TRACK TURBO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-873 | HOOD W/DECALS-BCWT TURBO | 1 | $1,422.95 | |
| 2 | 1718-872 | HOOD, W/O DECALS-BCWT TURBO | 1 | $1,090.95 | |
| 3 | 0717-183 | FOAM,HOOD-MIDDLE (TURBO) | 1 | $169.95 | |
| 4 | 0717-192 | FOAM, HOOD-HEADLIGHT-CENTER (TURBO) | 1 | $14.95 | |
| 5 | 0717-186 | FOAM,HOOD-RH-GUAGE(TURBO) | 1 | $9.59 | |
| 5 | 0717-187 | FOAM, HOOD-LH-GUAGE(TURBO) | 1 | $141.95 | |
| 6 | 0717-190 | FOAM, HOOD-RH,OUTER GUAGE (TURBO) | 1 | $15.11 | |
| 6 | 0717-191 | FOAM, HOOD-LH,OUTER-GUAGE (TURBO) | 1 | $160.95 | |
| 7 | 0717-188 | FOAM, HOOD-RH-REAR SIDE (TURBO) | 1 | $156.95 | |
| 7 | 0717-189 | FOAM, HOOD-LH-REAR SIDE (TURBO) | 1 | $4.95 | |
| 8 | 0717-184 | FOAM,HOOD-RH SIDE(TURBO) | 1 | $22.01 | |
| 8 | 0717-185 | FOAM,HOOD-LH SIDE(TURBO) | 1 | $22.01 | |
| 9 | 3606-375 | FOIL, HOOD, LH, SIDE, UPPER | 1 | $14.95 | |
| 10 | 3606-372 | FOIL, HOOD, RH, UPPER | 1 | $9.95 | |
| 10 | 3606-373 | FOIL, HOOD, LH, UPPER | 1 | $5.95 | |
| 11 | 2606-556 | FOIL, PROTECTIVE,3" X 6" | 1 | $2.61 | |
| 12 | 3606-374 | FOIL, HOOD, RH, LOWER | 1 | $26.95 | |
| 13 | 3606-376 | FOIL, HOOD, UPPER | 1 | $24.77 | |
| 14 | 5611-837 | DECAL, WARNING-BREAK-IN (T660) | 1 | $65.95 | |
| 15 | 5611-840 | DECAL, WARNING-T660-ENGLISH | 1 | $27.95 | |
| 15 | 5611-841 | DECAL, WARNING-T660-FRENCH | 1 | $37.95 | |
| 16 | 5611-836 | DECAL,CAUTION/WARNING-REV (T660) | 1 | $73.95 | |
| 17 | 3606-236 | SCREEN, VENT-HOOD-RH REAR-MOLDED-BLK | 1 | $113.95 | |
| 17 | 3606-237 | SCREEN, VENT-HOOD-LH REAR-MOLDED-BLK | 1 | $122.95 | |
| 18 | 4606-161 | SCREEN, VENT-HOOD-LH/MIDDLE-TURBO-BLK | 1 | $82.95 | |
| 19 | 3606-235 | SCREEN, VENT-HOOD-LH FRT-MOLDED-BLK | 1 | $75.95 | |
| 20 | 0123-987 | CLIP,U-TYPE | 1 | $0.68 | |
| 21 | 6611-976 | DECAL, HOOD-VENT UPPER-RH-BCWT TURBO | 1 | $17.95 | |
| 21 | 6611-977 | DECAL, HOOD-VENT UPPER-LH-BCWT TURBO | 1 | $14.95 | |
| 22 | 6611-978 | DECAL, HOOD-LOWER-RH-BCWT TURBO | 1 | $341.95 | |
| 22 | 6611-979 | DECAL, HOOD-LOWER-LH-BCWT TURBO | 1 | $298.95 | |
| 23 | 6611-972 | DECAL, HOOD-FORWARD-"TURBO"-RH-BCWT | 1 | $269.95 | |
| 23 | 6611-973 | DECAL, HOOD-FORWARD-"TURBO"-LH-BCWT | 1 | $236.95 | |
| 24 | 6611-548 | DECAL, HOOD-"AC"-BCWT | 1 | $29.95 | |
| 25 | 0619-946 | TAPE,DOUBLE COATED-ACYLIC FOAM(1'LENGTH) | 1 | $37.95 | |
| 26 | 1718-874 | COVER, HOOD W/DECALS | 1 | $190.95 | |
| 27 | 4606-112 | COVER, HOOD-PTD BLUE | 1 | $412.95 | |
| 28 | 6611-971 | DECAL, HOOD-CREST-BCWT TURBO | 1 | $160.95 | |
| 29 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 31 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 32 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 33 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 35 | 3606-746 | CABLE, HOOD-37" | 1 | $14.95 | |
| 37 | 1670-550 | DEFLECTOR, AIR INTAKE | 1 | $20.63 | |
| 38 | 4606-158 | SCREEN, VENT-HOOD-RH/FRT-MOLDED-BLK | 1 | $31.95 | |
| 39 | 1623-164 | SCREW, SHOULDER-HOOD HINGE (T660) | 1 | $6.89 | |
| 40 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 |
