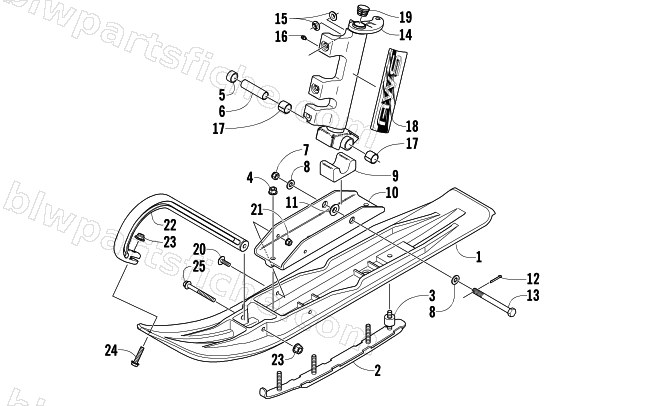

2006 Arctic Cat BEARCAT WIDE TRACK TURBO — SKI AND SPINDLE ASSEMBLY
2006 BEARCAT WIDE TRACK TURBO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1703-867 | SKI, PLASTIC WIDE-MACHINED | 1 | $231.95 | |
| 1 | 0703-492 | SKI,PLASTIC-MACH(WIDE/DEEP) | 1 | $318.95 | |
| 2 | 1703-848 | SKAG, DUAL, RH- 1 X 4" CARBIDE-PTD BLK | 1 | $108.95 | |
| 2 | 1703-849 | SKAG, DUAL, LH- 1 X 4" CARBIDE-PTD BLK | 1 | $108.95 | |
| 2 | 1703-003 | SKAG, LONG-4'CRB/HDWELD,PTD BLK | 1 | $65.95 | |
| 3 | 0603-616 | SPACER,SADDLE | 1 | $20.63 | |
| 4 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 5 | 1603-908 | SPACER,SPINDLE-PLASTIC SKI | 1 | $13.73 | |
| 6 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 7 | 0123-296 | NUT,FLEX-FULL 7/16-20 | 1 | $6.47 | |
| 8 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 9 | 1603-960 | DAMPER,SKI-RUBBER | 1 | $12.35 | |
| 10 | 0703-269 | SADDLE,SKI-ASSY | 1 | $78.95 | |
| 11 | 0603-621 | INSERT-SKI SADDLE | 1 | $4.95 | |
| 12 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 13 | 0623-552 | SCREW,CAP-HH 7/16-20 X 4.50 W/HOLE | 1 | $12.35 | |
| 14 | 1703-958 | SPINDLE, FAB - RH-PLAT | 1 | $287.95 | |
| 14 | 1703-959 | SPINDLE, FAB - LH-PLAT | 1 | $271.95 | |
| 15 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 | |
| 16 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 17 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 18 | 6611-546 | DECAL, SPINDLE-RH-BCWT | 1 | $34.95 | |
| 18 | 6611-547 | DECAL, SPINDLE-LH-BCWT | 1 | $34.95 | |
| 19 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 | |
| 20 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 21 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 22 | 0603-624 | HANDLE,PLASTIC-BLACK | 1 | $32.95 | |
| 23 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 24 | 8020-135 | SCREW,CAP-HFH 5/16-18 X 1.50 G5 Z&Y | 1 | $1.64 | |
| 25 | 8020-143 | SCREW,CAP-HFH 5/16-18 X 3.50 G5 Z&Y | 1 | $21.95 |
