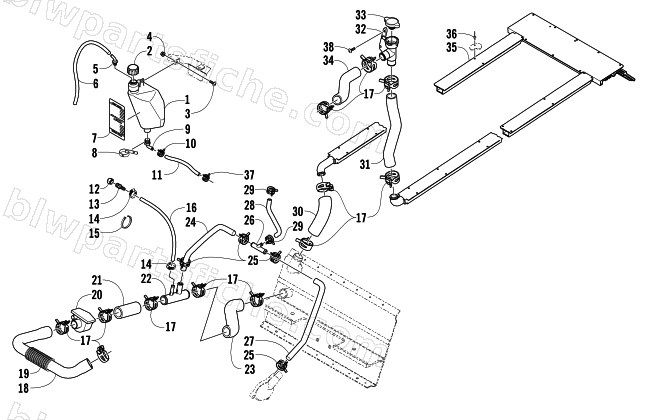

COOLING ASSEMBLY
2006 BEARCAT WIDE TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-246 | TANK, COOLANT | 1 | $94.95 | |
| 2 | 0670-035 | CAP,TANK-WATER | 1 | $16.49 | |
| 3 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 4 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 5 | 0670-242 | FITTING,VENT-90 DEGREE | 1 | $3.95 | |
| 6 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 7 | 4611-093 | DECAL, FILL LEVEL-COOLANT TANK | 1 | $24.77 | |
| 8 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 | |
| 9 | 0670-075 | FITTING,ELBOW | 1 | $4.54 | |
| 10 | 1623-234 | CLAMP, HOSE-13.08mm ID | 1 | $1.09 | |
| 11 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 11 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 12 | 1670-303 | CAP, DRAIN-2002 800 L/C | 1 | $2.88 | |
| 13 | 0623-976 | ADAPTER, DRAIN-2002 800 L/C | 1 | $2.75 | |
| 14 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 15 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 16 | 0610-076 | HOSE, WATER-10 FT {0619-124} | 1 | $65.95 | |
| 18 | 0610-503 | HOSE, COOLANT-JUNCTION/PUMP | 1 | $34.95 | |
| 19 | 0619-619 | HOSE,PROT-CORRUGETED-4" 1.06 ID BLK NY | 1 | $3.44 | |
| 20 | 0609-563 | HEATER, INLINE HOSE-220 VOLT-4 STROKE | 1 | $232.95 | |
| 20 | 0609-182 | HEATER, INLINE HOSE | 1 | $145.95 | |
| 21 | 0610-539 | HOSE, COOLANT-CTL 3.75" | 1 | $30.95 | |
| 22 | 2606-502 | FITTING, DOUBLE T-BOTH OPEN-12MM/6MM | 1 | $12.35 | |
| 23 | 0610-501 | HOSE, COOLANT-HEAT EXCH/JUNCTION | 1 | $29.95 | |
| 24 | 0610-520 | HOSE, FORMED-Y FITTING/DOUBLE T FITTING | 1 | $44.95 | |
| 25 | 1623-285 | CLAMP,HOSE-SPRING (12W X 22) | 1 | $2.88 | |
| 26 | 2606-625 | FITTING, Y-12mm/6mm | 1 | $13.73 | |
| 27 | 0610-519 | HOSE, FORMED THERM MANIFOLD/Y FITTING | 1 | $51.95 | |
| 28 | 0610-518 | HOSE,THROTTLE BODY TO Y (8MM) | 1 | $31.95 | |
| 29 | 1623-197 | CLAMP, HOSE-SPRING-14MM | 1 | $2.75 | |
| 30 | 0610-502 | HOSE, COOLANT-REAR EXCH/FRONT EXCH | 1 | $30.95 | |
| 31 | 0610-651 | HOSE, COOLANT-EXCH TO FILL | 1 | $36.95 | |
| 32 | 3606-857 | NECK, FILLER-COOLANT-T660 | 1 | $73.95 | |
| 33 | 2606-284 | CAP, MINI RADIATOR | 1 | $32.95 | |
| 34 | 0610-653 | HOSE, COOLANT-FILL TO ENGINE | 1 | $31.95 | |
| 35 | 2706-932 | HEAT EXCHANGER-REAR-WELDT | 1 | $401.95 | |
| 36 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 37 | 1623-351 | CLAMP, HOSE-12.32MM ID | 1 | $0.95 | |
| 38 | 1623-547 | SCREW,MACH-W/LOC TSTRH M6X1.0X10 Z&Y | 1 | $1.23 |
