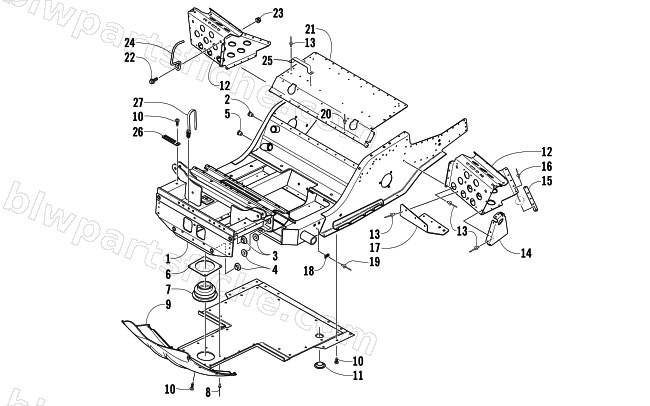

2006 Arctic Cat BEARCAT WIDE TRACK — FRONT FRAME AND FOOTREST ASSEMBLY
2006 BEARCAT WIDE TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-086 | CHASSIS,FRT END-S/P ASSY UNPTD | 1 | $1,312.95 | |
| 2 | 0623-581 | INSERT, A L SERIES AL57-518-150 5/16-18 | 1 | $3.16 | |
| 3 | 0607-421 | INSERT,UPPER A-ARM MTG. | 1 | $2.47 | |
| 4 | 0607-420 | INSERT,LOWER A-ARM MTG. | 1 | $2.47 | |
| 5 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 6 | 0712-952 | RING,EXH OUTLET-UPPER-PTD BLK | 1 | $9.95 | |
| 7 | 1612-027 | BOOT,EXHAUST-1.78 | 1 | $50.95 | |
| 8 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 9 | 3706-048 | BELLY PAN, CENTER, PLATINUM-ROUTED-BCWT | 1 | $154.95 | |
| 10 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 11 | 2606-367 | PLUG, OIL DRAIN ACCESS | 1 | $3.16 | |
| 12 | 2606-274 | FOOTREST, RH | 1 | $100.95 | |
| 12 | 2606-275 | FOOTREST, LH | 1 | $89.95 | |
| 13 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 14 | 0607-676 | GUSSET, FOOTREST-RH | 1 | $19.95 | |
| 14 | 0607-677 | GUSSET, FOOTREST-LH | 1 | $20.95 | |
| 15 | 2706-110 | PLATE,BACKING-FOOTREST-PTD BLK | 1 | $6.95 | |
| 16 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 17 | 0607-679 | BRKT, RUNNING BOARD-LH | 1 | $0.00 | |
| 18 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 19 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 20 | 0123-418 | RIVET, SOLID ALUM-.156 X.312 | 1 | $0.68 | |
| 21 | 4606-060 | COVER, FRONT-BCWT | 1 | $67.95 | |
| 22 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 23 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 24 | 0745-200 | BRKT,HARNESS-PTD BLK | 1 | $14.95 | |
| 25 | 0707-710 | BRKT,HOSE HOLDDOWN-PTD BLK | 1 | $17.87 | |
| 26 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 27 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 |
