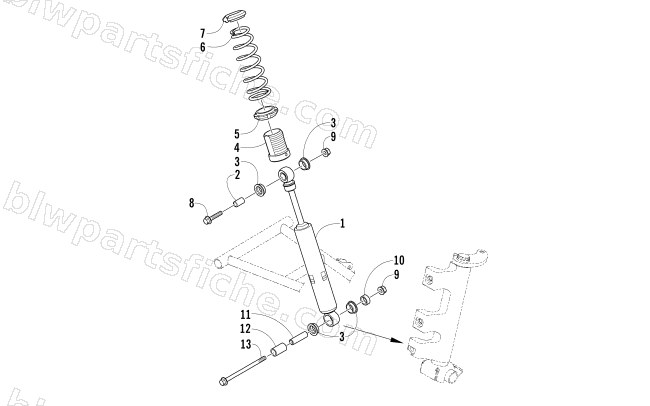

FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY
2006 BEARCAT WIDE TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1603-174 | SHOCK,SKI | 1 | $244.95 | |
| 2 | 0604-309 | SLEEVE,SHOCK ABSORBER | 1 | $2.33 | |
| 3 | 0604-310 | BUSHING,SHOCK ABSORBER | 1 | $6.75 | |
| 4 | 0603-147 | SLEEVE,THREADED-SHOCK | 1 | $60.95 | |
| 5 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 | |
| 6 | 2703-013 | SPRING, COMPRESSION-PTD VIPER BLUE | 1 | $77.95 | |
| 7 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 8 | 8020-226 | SCREW,CAP-HFH 3/8-16 X 1.75 Z&Y | 1 | $2.95 | |
| 9 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 10 | 0603-855 | SPACER, SHOCK MTG - REAR | 1 | $3.99 | |
| 11 | 1604-184 | SLEEVE, SHOCK ABSORBER | 1 | $42.95 | |
| 12 | 0603-854 | SPACER, SHOCK MTG - FRT | 1 | $13.73 | |
| 13 | 8020-234 | SCREW,CAP-HFH 3/8-16 X 4.00 Z&Y | 1 | $6.89 |
