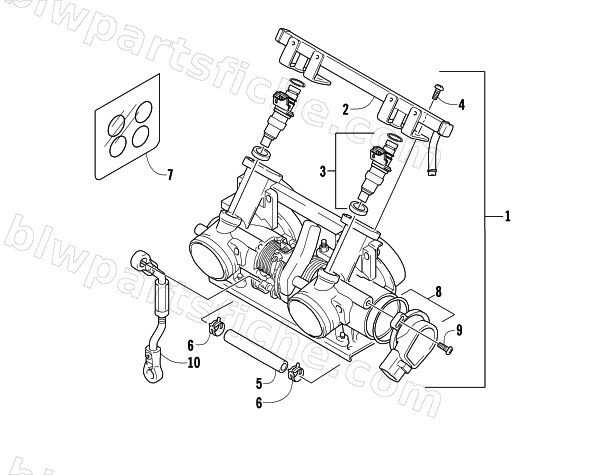

2006 Arctic Cat CROSSFIRE 600 EFI SNO PRO — THROTTLE BODY ASSEMBLY
2006 CROSSFIRE 600 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-720 | BODY,THROTTLE-ASS'Y (CIR) | 1 | $2,106.95 | |
| 1 | 3007-025 | R/B 3007-441 | 1 | $2,187.95 | |
| 1 | 3006-722 | BODY,THROTTLE-ASS'Y (TRI) | 1 | $1,878.95 | |
| 2 | 3006-517 | PIPE ASSY,FUEL DELIVERY | 1 | $948.95 | |
| 3 | 3007-698 | INJECTOR,FUEL (CIR) | 1 | $571.95 | |
| 3 | 3007-699 | INJECTOR,FUEL (SQU) | 1 | $571.95 | |
| 3 | 3007-700 | INJECTOR,FUEL (TRI) | 1 | $750.95 | |
| 4 | 3007-443 | SCREW | 1 | $2.06 | |
| 5 | 3006-723 | HOSE | 1 | $56.95 | |
| 6 | 3004-193 | CLAMP, HOSE-EFI THROTTLE BODY,M12 | 1 | $4.95 | |
| 7 | 3005-692 | O-RING SET | 1 | $118.95 | |
| 8 | 3006-939 | THROTTLE POSITION SENSOR | 1 | $561.95 | |
| 9 | 3007-026 | SCREW | 1 | $2.47 | |
| 10 | 3006-514 | ROD COMP,OIL PUMP CONTROL | 1 | $68.95 |
