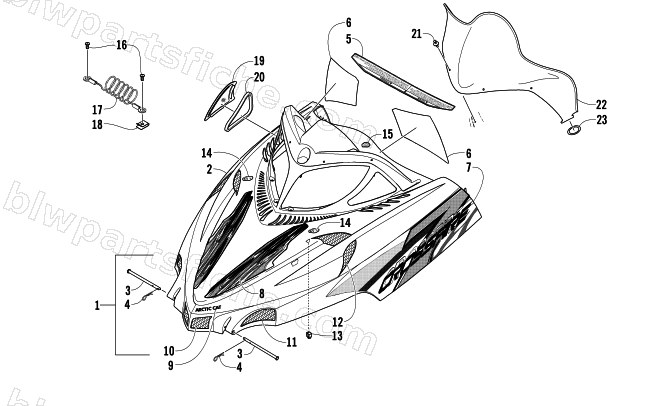

2006 Arctic Cat CROSSFIRE 700 EFI EARLY BUILD — HOOD AND WINDSHIELD ASSEMBLY
2006 CROSSFIRE 700 EFI EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-868 | HOOD W/DECALS-CF 700 EFI-BLK | 1 | $1,264.95 | |
| 1 | 1718-869 | HOOD W/DECALS-CF 700 EFI-ORN | 1 | $1,264.95 | |
| 2 | 1718-598 | HOOD W/O DECALS-BLK (M-SERIES) | 1 | $720.95 | |
| 2 | 1718-712 | HOOD W/O DECALS (M-SERIES ORN) | 1 | $1,026.95 | |
| 3 | 1623-026 | PIN,CLEVIS-1/4 | 1 | $33.95 | |
| 4 | 0623-847 | CLIP, HAIRPIN | 1 | $0.95 | |
| 5 | 6611-143 | DECAL,CAUTION-HOOD | 1 | $15.11 | |
| 6 | 6611-144 | DECAL,WARNING-HOOD-ENGLISH | 1 | $27.95 | |
| 6 | 6611-145 | DECAL,WARNING-HOOD-FRENCH | 1 | $15.11 | |
| 7 | 7611-046 | DECAL,HOOD-LWR BLK RH-"CROSSFIRE 7" | 1 | $120.95 | |
| 7 | 7611-047 | DECAL,HOOD-LWR BLK LH-"CROSSFIRE 7" | 1 | $120.95 | |
| 7 | 7611-054 | DECAL,HOOD-LWR ORN RH-"CROSSFIRE 7" | 1 | $94.95 | |
| 7 | 7611-055 | DECAL,HOOD-LWR ORN LH-"CROSSFIRE 7" | 1 | $94.95 | |
| 8 | 7611-048 | DECAL,HOOD-UPR BLK RH | 1 | $255.95 | |
| 8 | 7611-049 | DECAL,HOOD-UPR BLK LH | 1 | $243.95 | |
| 8 | 7611-056 | DECAL,HOOD-UPR ORN RH | 1 | $59.95 | |
| 8 | 7611-057 | DECAL,HOOD-UPR ORN LH | 1 | $107.95 | |
| 9 | 7611-058 | DECAL,NOSE-"ARCTIC CAT" GRN | 1 | $185.95 | |
| 9 | 7611-061 | DECAL,NOSE-"ARCTIC CAT" ORN | 1 | $17.87 | |
| 10 | 2706-793 | SCREEN,VENT-HOOD-FRT CENTER-PTD BLK | 1 | $33.95 | |
| 11 | 2706-794 | SCREEN,VENT-HOOD-FRT R/H-PTD BLK | 1 | $26.95 | |
| 11 | 2706-795 | SCREEN,VENT-HOOD-FRT L/H-PTD BLK | 1 | $26.95 | |
| 12 | 2706-796 | SCREEN,VENT-HOOD-REAR R/H-PTD BLK | 1 | $43.95 | |
| 12 | 2706-797 | SCREEN,VENT-HOOD-REAR L/H-PTD BLK | 1 | $33.95 | |
| 13 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 14 | 0617-490 | FOAM,ACOUSTICAL-HOOD-RH | 1 | $42.95 | |
| 14 | 0617-545 | FOAM,ACOUSTICAL-HOOD-LH | 1 | $112.95 | |
| 15 | 0617-489 | FOAM,HOOD/CONSOLE | 1 | $19.25 | |
| 16 | 0623-302 | SCREW,SELF TAP-HWH #12X1/2 TYPE | 1 | $0.26 | |
| 17 | 2606-726 | CABLE,HOOD-17.00 | 1 | $20.63 | |
| 18 | 1623-052 | NUT,U | 1 | $0.95 | |
| 19 | 4706-180 | BEZEL,INTAKE-S/P ASSY-RH | 1 | $42.95 | |
| 19 | 4706-181 | BEZEL,INTAKE-S/P ASSY-LH | 1 | $42.95 | |
| 20 | 0617-486 | FOAM,INTAKE BEZEL-RH | 1 | $15.11 | |
| 20 | 0617-487 | FOAM,INTAKE BEZEL-LH | 1 | $15.11 | |
| 21 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 22 | 3606-868 | WINDSHIELD,FORMED-BLK | 1 | $200.95 | |
| 23 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 |
