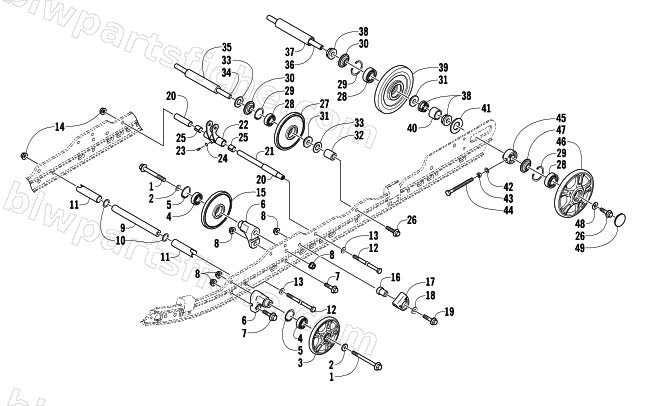

IDLER WHEEL ASSEMBLY
2006 CROSSFIRE 700 EFI EARLY BUILD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8020-232 | SCREW,CAP-HFH 3/8-16 X 3.25 Z&Y | 1 | $5.65 | |
| 2 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 3 | 3604-047 | WHEEL,IDL-5.63 W.787"ID PRL CAT GRN | 1 | $53.95 | |
| 3 | 3604-048 | WHEEL,IDL-5.63 W.787"ID ORN | 1 | $53.95 | |
| 4 | 3604-033 | BEARING,WHL-NSK CHINA 6004-W/ENS GREASE | 1 | $20.63 | |
| 5 | 0623-946 | RING,INTERNAL RETAINING-#165 | 1 | $2.06 | |
| 6 | 2604-579 | BLOCK,MTG-IDLER WHEEL(DIE CAST) | 1 | $45.95 | |
| 7 | 8020-224 | SCREW,CAP-HFH 3/8-16 X 1.250 Z&Y | 1 | $13.73 | |
| 8 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 9 | 1604-792 | AXLE, STEEL-7/8 X 3/8 X 8.750 ZY | 1 | $58.95 | |
| 10 | 0623-912 | WASHER,FLAT-.890 X 1.19 X .060 Z&Y | 1 | $0.95 | |
| 11 | 1604-793 | SPACER,FRONT ARM SHOCK | 1 | $29.95 | |
| 12 | 1623-037 | SCREW, CAP-HH 3/8-16X10 GD 8 Z&Y | 1 | $6.47 | |
| 13 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 14 | 8047-490 | NUT,HEX FLG-NY LOCK 3/8-16 GR G Z&Y | 1 | $0.95 | |
| 15 | 3604-039 | WHEEL,IDL-5.63 W.787"ID BLK (NO SPOKE) | 1 | $53.95 | |
| 16 | 0604-912 | BLOCK,SLIDE-SPRING-MTG | 1 | $27.95 | |
| 17 | 2604-515 | SLIDE, SPRING-SHORT | 1 | $5.92 | |
| 18 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 19 | 8020-228 | SCREW,CAP-HFH 3/8-16 X 2.25 G5 Z&Y | 1 | $2.75 | |
| 20 | 2604-109 | SPACER,ALUM-2.805" | 1 | $12.35 | |
| 21 | 1604-209 | AXLE,STEEL-8.75 (THRU BOLT) | 1 | $73.95 | |
| 22 | 0704-994 | PIVOT,REAR SHOCK-FABR | 1 | $74.95 | |
| 23 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 24 | 1623-011 | WASHER- GREASE FITTING | 1 | $0.68 | |
| 25 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 26 | 1623-248 | SCREW,CAP-HFH 3/8-16X1.125 W/2353 | 1 | $4.40 | |
| 27 | 1604-684 | WHEEL,IDLER-5.63(2-5/8DIA INSR) | 1 | $53.95 | |
| 28 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 29 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 30 | 1604-772 | INSERT,5/8 BORE X 2 OD (SHORT) | 1 | $5.51 | |
| 31 | 1604-773 | INSERT,5/8 BORE X 1.580 OD | 1 | $5.51 | |
| 32 | 1604-213 | SPACER,ALUM-THK WALL 1.410 | 1 | $33.95 | |
| 33 | 0623-675 | WASHER, FLAT-.641 X 1.187 X .060 Z&Y | 1 | $0.95 | |
| 34 | 0604-930 | AXLE,XBRC (ALUM) -625X8.750 (3/8-16) | 1 | $37.95 | |
| 35 | 1604-214 | SPACER,ALUM-THK WALL (3.780") | 1 | $27.95 | |
| 36 | 1604-217 | AXLE,REAR WHEEL STEEL | 1 | $73.95 | |
| 37 | 1704-466 | SPACER,REAR WHEEL-PTD BLK | 1 | $17.87 | |
| 38 | 0604-968 | BUSHING,SPACER-REAR WHEEL | 1 | $9.59 | |
| 39 | 1604-685 | WHEEL,IDL-6.38(2-5/8DIA INSR) | 1 | $53.95 | |
| 40 | 0604-937 | SPACER,REAR WHEEL -OUTER | 1 | $12.35 | |
| 41 | 0623-220 | WASHER,FLAT .625IDX1.50ODX.109 | 1 | $4.95 | |
| 42 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 43 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 44 | 0623-123 | SCREW,CAP-HEX-3/8-16X5 | 1 | $2.47 | |
| 45 | 0604-936 | BUSHING,REAR WHEEL ADJUSTER | 1 | $10.97 | |
| 46 | 3604-018 | WHEEL,IDL-6.38SPKD(1L-5/8DIAINSR)ORG | 1 | $53.95 | |
| 47 | 1604-774 | INSERT,5/8 BORE X 2" (LONG) | 1 | $6.34 | |
| 48 | 0123-570 | WASHER,FLAT .390X1.38X.134 | 1 | $5.92 | |
| 49 | 0604-246 | CAP,IDLER WHEEL-BLACK (DP 1500) | 1 | $3.16 |
