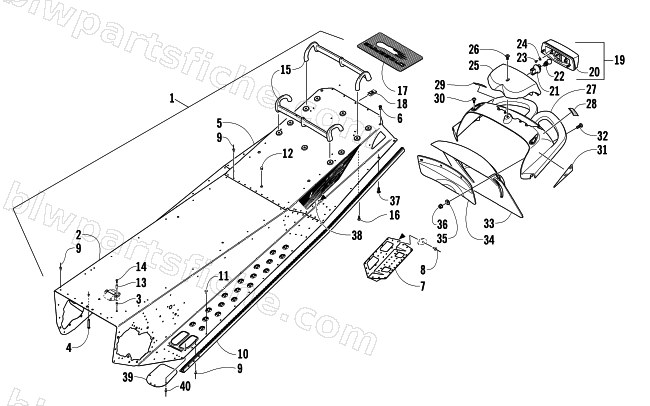

2006 Arctic Cat CROSSFIRE 700 EFI EARLY BUILD — TUNNEL, REAR BUMPER, AND TAILLIGHT ASSEMBLY
2006 CROSSFIRE 700 EFI EARLY BUILD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1707-058 | CHASSIS,TUNNEL S/P ASSY | 1 | $2,067.59 | |
| 1 | 1718-898 | TUNNEL,S/P ASSY-PTD BLK | 1 | $962.95 | |
| 2 | 1707-064 | BODY,FRONT W/INSERTS-PTD BLK | 1 | $326.95 | |
| 3 | 1623-127 | INSERT, AL SERIES ALS4-1024-225 | 1 | $5.09 | |
| 5 | 2718-057 | TUNNEL,REAR W/INSERTS-PTD BLK | 1 | $908.95 | |
| 6 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 7 | 3706-152 | BRKT,SUSP MTG-PTD RH | 1 | $35.95 | |
| 7 | 3706-153 | BRKT,SUSP MTG-PTD LH | 1 | $35.95 | |
| 8 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 9 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 10 | 3706-290 | ROLL,TUNNEL 141" RH-PTD BLK | 1 | $64.95 | |
| 10 | 3706-291 | ROLL,TUNNEL 141" LH-PTD BLK | 1 | $60.95 | |
| 11 | 0123-418 | RIVET, SOLID ALUM-.156 X.312 | 1 | $0.68 | |
| 11 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 12 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 13 | 1623-045 | SPACER,COMPONENT PLATE | 1 | $2.75 | |
| 14 | 8017-406 | SCREW,MACH-TSTRH 10-24X1.75 GR2 Z&Y | 1 | $1.95 | |
| 15 | 3606-584 | RACK,PLASTIC-INJ MOLD | 1 | $331.95 | |
| 16 | 8017-577 | SCREW,MACH-TSTRH 1/4-20 X 1/2 GR2 Z&Y | 1 | $1.23 | |
| 17 | 4606-149 | PAD,RUBBER-TUNNEL | 1 | $17.87 | |
| 18 | 1623-487 | NUT,U- 1/4-20 X .109 | 1 | $0.95 | |
| 19 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 20 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 21 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 22 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 23 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 24 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 25 | 3606-747 | HOUSING,TAILLIGHT-INJ MOLD | 1 | $162.95 | |
| 26 | 8017-617 | SCREW,MACH-TSTRH 1/4-20 X 2.0 GR2 BLK Z | 1 | $6.47 | |
| 27 | 3606-431 | BUMPER,REAR-BLACK-INJ MOLD | 1 | $220.95 | |
| 28 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 29 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 30 | 8017-607 | SCREW,MACH-TSTRH 1/4-20 X 1/2 GR2 BLK Z | 1 | $3.16 | |
| 31 | 6611-012 | DECAL, REFLECTOR RED-RH | 1 | $16.49 | |
| 31 | 6611-013 | DECAL, REFLECTOR RED-LH | 1 | $16.49 | |
| 32 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 33 | 4606-227 | SNOWFLAP,BLK-W/7611-113 DECAL | 1 | $137.95 | |
| 34 | 3606-776 | SUPPORT,SNOWFLAP-INJ MOLD | 1 | $45.95 | |
| 35 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 36 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 37 | 1623-022 | SCREW,48-2 TXSPNH 1/4-10X.625 Z&Y | 1 | $6.47 | |
| 38 | 7611-042 | DECAL,TUNNEL-BLK RH | 1 | $34.95 | |
| 38 | 7611-043 | DECAL,TUNNEL-BLK LH | 1 | $34.95 | |
| 38 | 7611-050 | DECAL,TUNNEL-ORN RH | 1 | $218.95 | |
| 38 | 7611-051 | DECAL,TUNNEL-ORN LH | 1 | $158.95 | |
| 39 | 3606-849 | DEFLECTOR,SNOW-TUNNEL | 1 | $5.51 | |
| 40 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 |
