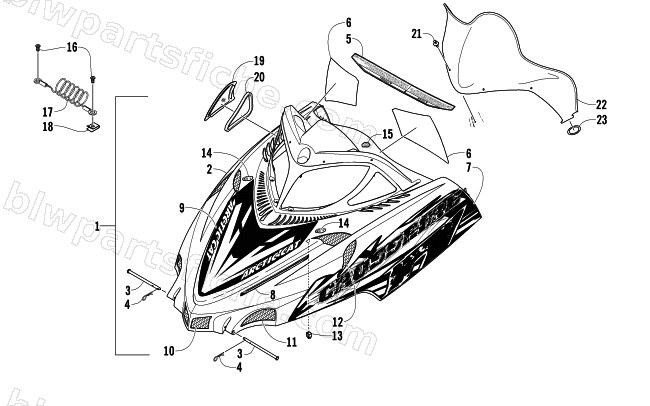

2006 Arctic Cat CROSSFIRE 700 EFI SNO PRO — HOOD AND WINDSHIELD ASSEMBLY
2006 CROSSFIRE 700 EFI SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-970 | HOOD W/DECALS-ORN (CF 7 SNO PRO) | 1 | $1,328.95 | |
| 1 | 1718-968 | HOOD W/DECALS-BLK (CF 7 SNO PRO) | 1 | $1,328.95 | |
| 1 | 1718-969 | HOOD W/DECALS-GRN (CF 7 SNO PRO) | 1 | $1,328.95 | |
| 2 | 1718-919 | HOOD W/O DECALS-ORN (M-SERIES) | 1 | $1,169.95 | |
| 2 | 1718-917 | HOOD W/O DECALS-BLK (M-SERIES) | 1 | $1,169.95 | |
| 2 | 1718-918 | HOOD W/O DECALS-PC GRN (M-SERIES) | 1 | $1,026.95 | |
| 3 | 1623-026 | PIN,CLEVIS-1/4 | 1 | $33.95 | |
| 4 | 0623-847 | CLIP, HAIRPIN | 1 | $0.95 | |
| 5 | 6611-143 | DECAL,CAUTION-HOOD | 1 | $15.11 | |
| 6 | 6611-144 | DECAL,WARNING-HOOD-ENGLISH | 1 | $27.95 | |
| 6 | 6611-145 | DECAL,WARNING-HOOD-FRENCH | 1 | $15.11 | |
| 7 | 7611-486 | DECAL,HOOD-"CROSSFIRE"-LOWER-RH (7 ORN) | 1 | $154.95 | |
| 7 | 7611-487 | DECAL,HOOD-"CROSSFIRE"-LOWER-LH (7 ORN) | 1 | $149.95 | |
| 7 | 7611-482 | DECAL,HOOD-"CROSSFIRE"-LOWER-RH (7 BLK) | 1 | $147.95 | |
| 7 | 7611-483 | DECAL,HOOD-"CROSSFIRE"-LOWER-LH (7 BLK) | 1 | $218.95 | |
| 7 | 7611-484 | DECAL,HOOD-"CROSSFIRE"-LOWER-RH (7 GRN) | 1 | $104.95 | |
| 7 | 7611-485 | DECAL,HOOD-"CROSSFIRE"-LOWER-LH (7 GRN) | 1 | $101.95 | |
| 8 | 7611-478 | DECAL,HOOD-FORWARD-RH (ORN) | 1 | $47.95 | |
| 8 | 7611-479 | DECAL,HOOD-FORWARD-LH (ORN) | 1 | $49.95 | |
| 8 | 7611-468 | DECAL,HOOD-FORWARD-RH (BLK) | 1 | $48.95 | |
| 8 | 7611-469 | DECAL,HOOD-FORWARD-LH (BLK) | 1 | $48.95 | |
| 8 | 7611-474 | DECAL,HOOD-FORWARD-RH (GRN) | 1 | $197.95 | |
| 8 | 7611-475 | DECAL,HOOD-FORWARD-LH (GRN) | 1 | $197.95 | |
| 9 | 7611-488 | DECAL,HOOD-CREST (ORN) | 1 | $213.95 | |
| 9 | 7611-472 | DECAL,HOOD-CREST (BLK) | 1 | $75.95 | |
| 9 | 7611-473 | DECAL,HOOD-CREST (GRN) | 1 | $166.95 | |
| 10 | 2706-793 | SCREEN,VENT-HOOD-FRT CENTER-PTD BLK | 1 | $33.95 | |
| 11 | 3706-260 | SCREEN,VENT-HOOD-FRT R/H-PTD BLK | 1 | $58.95 | |
| 11 | 3706-261 | SCREEN,VENT-HOOD-FRT L/H-PTD BLK | 1 | $58.95 | |
| 12 | 2706-796 | SCREEN,VENT-HOOD-REAR R/H-PTD BLK | 1 | $43.95 | |
| 12 | 2706-797 | SCREEN,VENT-HOOD-REAR L/H-PTD BLK | 1 | $33.95 | |
| 13 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 14 | 0617-490 | FOAM,ACOUSTICAL-HOOD-RH | 1 | $42.95 | |
| 14 | 0617-545 | FOAM,ACOUSTICAL-HOOD-LH | 1 | $112.95 | |
| 15 | 0617-489 | FOAM,HOOD/CONSOLE | 1 | $19.25 | |
| 16 | 0623-302 | SCREW,SELF TAP-HWH #12X1/2 TYPE | 1 | $0.26 | |
| 17 | 2606-726 | CABLE,HOOD-17.00 | 1 | $20.63 | |
| 18 | 1623-052 | NUT,U | 1 | $0.95 | |
| 19 | 4706-180 | BEZEL,INTAKE-S/P ASSY-RH | 1 | $42.95 | |
| 19 | 4706-181 | BEZEL,INTAKE-S/P ASSY-LH | 1 | $42.95 | |
| 20 | 0617-486 | FOAM,INTAKE BEZEL-RH | 1 | $15.11 | |
| 20 | 0617-487 | FOAM,INTAKE BEZEL-LH | 1 | $15.11 | |
| 21 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 22 | 3606-868 | WINDSHIELD,FORMED-BLK | 1 | $200.95 | |
| 23 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 |
