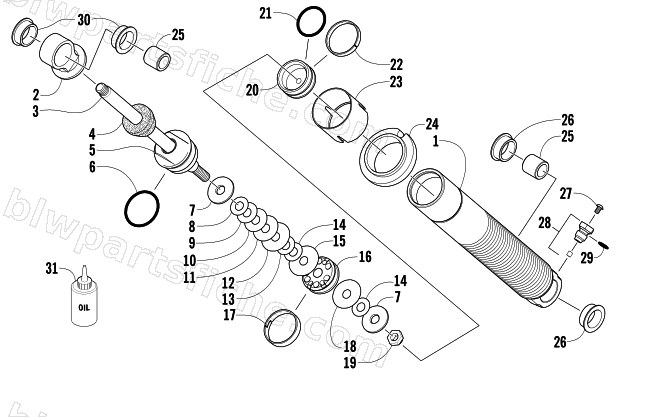

2006 Arctic Cat CROSSFIRE 700 EFI WEST YELLOWSTONE — FRONT SUSPENSION SHOCK ABSORBER
2006 CROSSFIRE 700 EFI WEST YELLOWSTONE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2603-262 | shK-10.076-ALUM | 1 | $344.95 | |
| 2 | 0603-910 | EYELET,SHOCK-FR SUSP(FOX ONLY) | 1 | $97.95 | |
| 3 | 2603-416 | SHAFT,SHOCK-.498 X 8.850" | 1 | $143.95 | |
| 4 | 0603-991 | BUMPER,STOP | 1 | $16.95 | |
| 5 | 4604-126 | BEARING, ENDCAP - LONG - W/BLEED ASSY | 1 | $49.95 | |
| 6 | 1604-271 | O-RING,OUTER | 1 | $2.47 | |
| 7 | 1604-272 | WASHER, TOP OUT -1.125 x .094 | 1 | $1.37 | |
| 8 | 2603-055 | VALVE,SHOCK- .800 DIA X .010 | 1 | $5.95 | |
| 9 | 2603-065 | VALVE,SHOCK- .900 DIA X .010 | 1 | $5.95 | |
| 10 | 2603-075 | VALVE,SHOCK-1.000 DIA X .010 | 1 | $5.95 | |
| 11 | 2603-095 | VALVE,SHOCK-1.100 DIA X .010 | 1 | $5.95 | |
| 12 | 2603-124 | VALVE,SHOCK-1.250 DIA X .008 | 1 | $5.95 | |
| 13 | 2603-047 | VALVE,SHOCK- .700 DIA X .015 | 1 | $5.95 | |
| 14 | 2603-052 | VALVE,SHOCK- .800 DIA X .006 | 1 | $5.95 | |
| 15 | 2603-132 | VALVE,SHOCK-1.300 DIA X .006 | 1 | $5.95 | |
| 16 | 1603-996 | PISTON, .120 ORIFICE | 1 | $60.95 | |
| 17 | 1604-274 | STRAP, PISTON - TEFLON | 1 | $24.77 | |
| 18 | 2603-125 | VALVE,SHOCK-1.250 DIA X .010 | 1 | $5.51 | |
| 19 | 0623-696 | NUT, FLEX - 3/8-24 UNF Z&Y | 1 | $2.95 | |
| 20 | 0704-791 | PISTON,BLEEDLESS-IFP-ASSY | 1 | $33.95 | |
| 21 | 2604-152 | O-RING,FLOATING PISTON | 1 | $2.88 | |
| 22 | 2604-153 | TEFLON BAND,FLOATING PISTON-1.459" | 1 | $26.95 | |
| 23 | 2603-012 | SLEEVE,PROTECTOR-ALUM.SHOCK - BLK | 1 | $6.06 | |
| 24 | 1603-911 | NUT,SPRING ADJUSTER-GRAY | 1 | $5.95 | |
| 25 | 1603-209 | SLEEVE, EYELET - INNER - .790 TLG | 1 | $1.23 | |
| 26 | 0603-955 | BUSHING, SKI SHOCK-.045" LIP | 1 | $9.59 | |
| 27 | 0624-433 | SCREW, MACH - HSBH 8-32X1/4 SS | 1 | $0.68 | |
| 28 | 2604-649 | VALVE,PRESSURE-ASSY | 1 | $26.95 | |
| 29 | 0830-168 | ORING,7.6454 ID X 1.778 CS | 1 | $1.09 | |
| 31 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 | |
| 31 | 3703-470 | SHOCK, SKI MONO TUBE 18.7" (475mm) SP | 1 | $381.95 |
