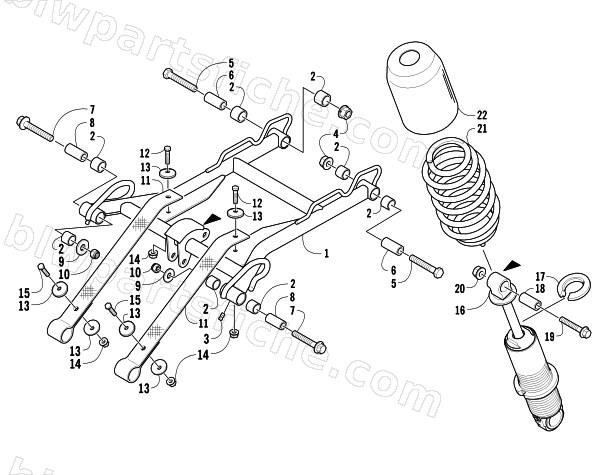

2006 Arctic Cat CROSSFIRE 700 EFI WEST YELLOWSTONE — REAR SUSPENSION FRONT ARM ASSEMBLY
2006 CROSSFIRE 700 EFI WEST YELLOWSTONE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-401 | ARM,FRONT-FABR - BLK | 1 | $300.95 | |
| 2 | 0604-889 | BUSHING,FRONT ARM | 1 | $3.71 | |
| 3 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 4 | 8047-490 | NUT,HEX FLG-NY LOCK 3/8-16 GR G Z&Y | 1 | $0.95 | |
| 5 | 8020-228 | SCREW,CAP-HFH 3/8-16 X 2.25 G5 Z&Y | 1 | $2.75 | |
| 6 | 0104-629 | SPACER,FRONT ARM-PIVOT | 1 | $19.25 | |
| 7 | 8020-229 | SCREW,CAP-HFH 3/8-16 X 2.50 Z&Y | 1 | $16.49 | |
| 8 | 1604-162 | AXLE,FRONT ARM | 1 | $10.97 | |
| 9 | 0114-197 | WASHER,FLAT .390 X 1.06 X.125 | 1 | $1.23 | |
| 10 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 11 | 3604-025 | STRAP,LIMITER-1.25"X15.60" | 1 | $22.01 | |
| 12 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 13 | 0623-875 | WASHER, BACKING-7MM ID X 11/8OD | 1 | $1.78 | |
| 14 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 15 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 16 | 0704-467 | SHOCK,FRT ARM-ASSY MELLONITE | 1 | $590.95 | |
| 17 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 18 | 1603-531 | AXLE,SHOCK-FRT ARM | 1 | $4.26 | |
| 19 | 8020-227 | SCREW,CAP-HFH 3/8-16 X 2.00 Z&Y | 1 | $2.47 | |
| 20 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 21 | 1704-461 | SPRING,FRONT ARM-135#D BLK | 1 | $132.95 | |
| 22 | 0604-790 | COVER,SUSPENSION SPRING (SHORT) | 1 | $24.77 |
