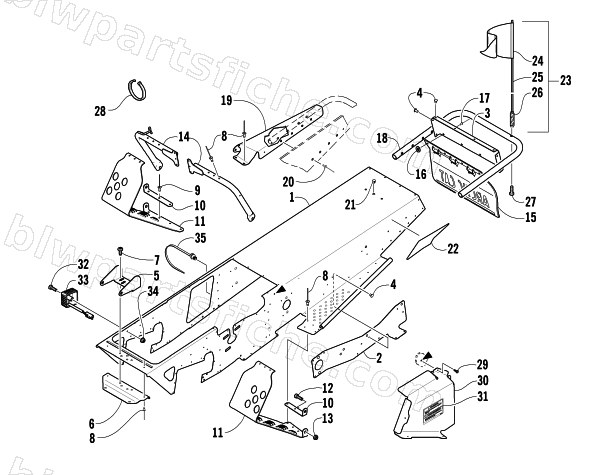

2006 Arctic Cat F 120 — CHASSIS, FOOTREST, AND REAR BUMPER ASSEMBLY
2006 F 120
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-900 | TUNNEL,S/P ASSY-PTD BLK | 1 | $631.95 | |
| 2 | 2706-156 | PLATE,TUNNEL-REINF-RH-PTD BLK | 1 | $34.95 | |
| 2 | 2706-157 | PLATE,TUNNEL-REINF-LH-PTD BLK | 1 | $34.95 | |
| 3 | 2706-158 | PLATE,COVER-TUNNEL-PTD BLK | 1 | $19.25 | |
| 4 | 0123-418 | RIVET, SOLID ALUM-.156 X.312 | 1 | $0.68 | |
| 5 | 2706-141 | BRKT,LOWER MTG-HOOD-PTD BLK | 1 | $16.49 | |
| 6 | 3606-993 | R/B 3706-774 | 1 | $16.95 | |
| 7 | 0623-892 | SCREW,SELF TAP-HWH 1/4-20X1/2 | 1 | $0.95 | |
| 8 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 9 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 10 | 2706-180 | BRKT,SUPPORT-FOOTREST-R/H-PTD BLK | 1 | $10.97 | |
| 10 | 2706-181 | BRKT,SUPPORT-FOOTREST-L/H-PTD BLK | 1 | $10.97 | |
| 11 | 1606-784 | FOOTREST-RH | 1 | $53.95 | |
| 11 | 1606-785 | FOOTREST-LH | 1 | $53.95 | |
| 12 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 13 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 1706-283 | SUPPORT,FOOTREST-WELD'T-RH | 1 | $46.95 | |
| 14 | 1706-041 | SUPPORT,FOOTREST-WELD'T-LH | 1 | $41.95 | |
| 15 | 6606-449 | SNOWFLAP-BLACK | 1 | $46.95 | |
| 16 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 17 | 8060-628 | RIVET,BLIND-DH AA66 BLK | 1 | $1.23 | |
| 18 | 3706-006 | BUMPER,REAR-PTD BLK-F 120 | 1 | $34.95 | |
| 19 | 4706-262 | CAP,END-RH-PTD BLK | 1 | $22.95 | |
| 19 | 4706-263 | CAP,END-LH-PTD BLK | 1 | $23.95 | |
| 20 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 21 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 22 | 6611-688 | DECAL, REFLECTOR-RH | 1 | $15.11 | |
| 22 | 6611-689 | DECAL, REFLECTOR-LH | 1 | $15.11 | |
| 23 | 5706-621 | R/B 6706-408 | 1 | $112.95 | |
| 24 | 1706-104 | FLAG,SAFETY | 1 | $19.25 | |
| 26 | 2606-010 | MT, ASSY,SAFETY FLAG | 1 | $48.95 | |
| 27 | 8020-134 | SCREW,CAP-HFH 5/16-18 X 1.25 G5 Z&Y | 1 | $1.50 | |
| 28 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 29 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 30 | 2706-217 | COVER,SPROCKET-DRIVEN-PTD BLK | 1 | $34.95 | |
| 31 | 3611-754 | DECAL, WARNING,GUARD | 1 | $3.44 | |
| 32 | 8020-045 | SCREW,CAP-HFH 1/4-20 X 1.500 Z&Y | 1 | $0.95 | |
| 33 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 34 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 35 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 |
