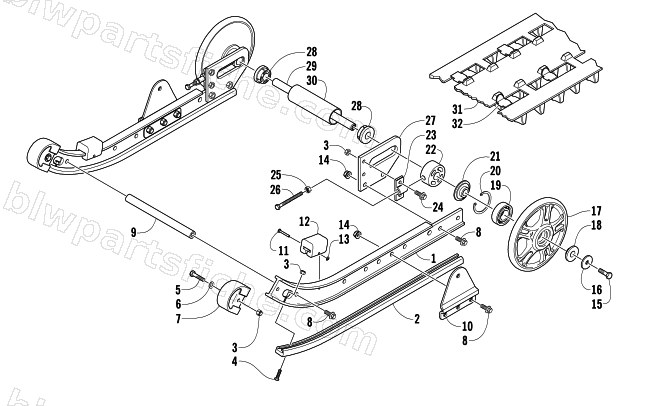

2006 Arctic Cat F 120 — SLIDE RAIL, IDLER WHEELS, AND TRACK ASSEMBLY
2006 F 120
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1604-705 | RAIL, SLIDE-FORMED | 1 | $73.95 | |
| 2 | 1604-568 | WEARSTRIP,SLIDE RAIL-BLK-Z 120 | 1 | $23.39 | |
| 3 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 4 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 5 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 6 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 7 | 0604-231 | NOSE PIECE,SLIDE RAIL-BLACK | 1 | $15.11 | |
| 8 | 8020-131 | SCREW,CAP-HFH 5/16-18 X0.875 G5 Z&Y | 1 | $1.50 | |
| 9 | 1604-566 | AXLE,CROSSBRACE | 1 | $20.63 | |
| 10 | 0704-896 | BRKT,SUPPORT-FRT ARM-PTD BLK | 1 | $19.25 | |
| 11 | 0123-767 | RIVET,SOLID-1/8 X 1.50 | 1 | $0.95 | |
| 12 | 0104-631 | PAD,SHOCK-RUBBER | 1 | $6.06 | |
| 13 | 0423-090 | NUT,PRESS ON (PUSHNUT)-1/8 STUD | 1 | $0.40 | |
| 14 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 15 | 8020-222 | SCREW,CAP-HFH 3/8-16 X 1.00 G5 Z&Y | 1 | $1.37 | |
| 16 | 0123-570 | WASHER,FLAT .390X1.38X.134 | 1 | $5.92 | |
| 17 | 2604-982 | WHEEL,IDLER-5.63 SPOKED-GREEN-F120 | 1 | $53.95 | |
| 17 | 2604-983 | WHEEL,IDLER-5.63 SPOKED-ORANGE-F120 | 1 | $51.95 | |
| 18 | 1604-773 | INSERT,5/8 BORE X 1.580 OD | 1 | $5.51 | |
| 19 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 20 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 21 | 1604-772 | INSERT,5/8 BORE X 2 OD (SHORT) | 1 | $5.51 | |
| 22 | 0604-165 | BUSHING,REAR WHEEL-ADJ. | 1 | $10.97 | |
| 23 | 0604-206 | TRACK ADJUSTOR-MACHINED | 1 | $13.73 | |
| 24 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 25 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 26 | 0124-310 | HHCS 3/8-16X4.0 THREADED GR5 Z&Y | 1 | $2.47 | |
| 27 | 1604-661 | HOUSING, REAR,AXLE | 1 | $32.95 | |
| 28 | 0604-968 | BUSHING,SPACER-REAR WHEEL | 1 | $9.59 | |
| 29 | 1604-562 | AXLE,IDLER-REAR | 1 | $37.95 | |
| 30 | 1604-563 | SPACER,REAR AXLE | 1 | $20.63 | |
| 31 | 2602-476 | TRACK, 2.125 X 10.00 X .688 | 1 | $509.95 | |
| 32 | 1602-079 | CLIP, TRACK | 1 | $10.97 |
