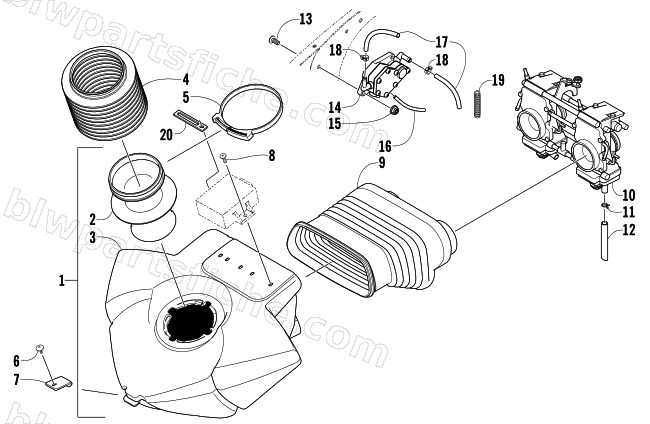

2006 Arctic Cat FIRECAT 500 SNO PRO — AIR SILENCER, CARBURETOR, AND FUEL PUMP ASSEMBLY
2006 FIRECAT 500 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-720 | SILENCER,AIR-ASSY | 1 | $132.95 | |
| 2 | 1670-473 | INLET,AIR SILENCER | 1 | $30.95 | |
| 3 | 1670-774 | SILENCER,AIR-ASSY | 1 | $101.95 | |
| 4 | 1670-514 | TUBE, INLET HOSE | 1 | $47.95 | |
| 5 | 1623-132 | CLAMP,SNP100 | 1 | $12.35 | |
| 6 | 1623-031 | R/B 2623-165 | 1 | $3.95 | |
| 7 | 3606-146 | HOLDDOWN,AIR SILENCER | 1 | $12.35 | |
| 8 | 1623-204 | SCREW,PLASTITE-HWH 1/4-10X1.0 Z&Y | 1 | $1.23 | |
| 9 | 1670-582 | BOOT, CARB-ASSY (500 D) | 1 | $100.95 | |
| 10 | 1670-569 | CARB,TM38-B379 | 1 | $1,369.95 | |
| 11 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 12 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 13 | 8017-582 | R/B 1623-689 | 1 | $0.65 | |
| 14 | 1670-416 | PUMP,FUEL-500 CARB | 1 | $56.95 | |
| 15 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 16 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 17 | 0610-692 | HOSE,OIL/WATER-25 FT | 1 | $117.95 | |
| 17 | 0610-693 | HOSE,OIL-100 FT | 1 | $432.95 | |
| 18 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 19 | 0716-558 | LOOM,PROTECTIVE-10' (0619-342) | 1 | $16.49 | |
| 20 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 |
