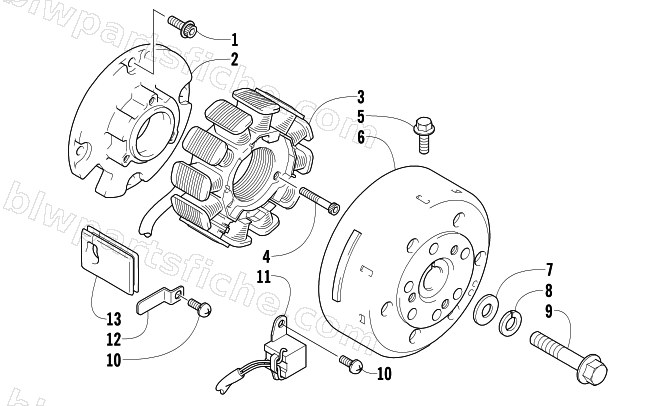

MAGNETO
2006 FIRECAT 500 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-449 | BOLT | 1 | $3.16 | |
| 2 | 3006-364 | BASE,STATOR '02 440 SNO PRO | 1 | $160.95 | |
| 3 | 3006-734 | STATOR ASSY '04 440 SNO PRO | 1 | $956.95 | |
| 4 | 3003-307 | BOLT,5X20 | 1 | $4.95 | |
| 5 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 6 | 3006-362 | FLYWHEEL, ASSY '02 440 SNO PRO | 1 | $1,249.95 | |
| 7 | 3005-987 | WASHER | 1 | $5.95 | |
| 8 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 9 | 3006-476 | BOLT,M10X54 | 1 | $5.65 | |
| 10 | 3007-553 | SCREW | 1 | $2.33 | |
| 11 | 3005-926 | SENSOR, IGNITION TIMING | 1 | $331.95 | |
| 12 | 3005-960 | PLATE, MAGNETO LEAD WIRE | 1 | $6.95 | |
| 13 | 3005-775 | GROMMET, MAGNETO LEAD WIRE | 1 | $19.25 |
