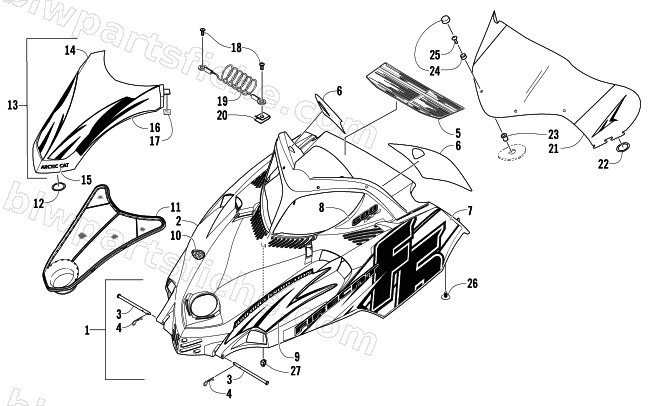

2006 Arctic Cat FIRECAT 600 EFI SNO PRO — HOOD AND WINDSHIELD ASSEMBLY
2006 FIRECAT 600 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-832 | HOOD W/DECALS-GRN (F6 EFI) | 1 | $1,328.95 | |
| 1 | 1718-840 | HOOD W/DECALS-ORN (F6 EFI) | 1 | $1,328.95 | |
| 1 | 1718-836 | HOOD W/DECALS-F6 EFI-BLK | 1 | $1,328.95 | |
| 2 | 1718-666 | HOOD W/O DECALS-PEARL CAT GRN | 1 | $1,090.95 | |
| 2 | 1718-638 | HOOD W/O DECALS-ORN | 1 | $1,242.95 | |
| 2 | 1718-636 | HOOD W/O DECALS-BLK | 1 | $1,242.95 | |
| 3 | 1623-026 | PIN,CLEVIS-1/4 | 1 | $33.95 | |
| 4 | 0623-847 | CLIP, HAIRPIN | 1 | $0.95 | |
| 5 | 4611-496 | DECAL, CAUTION/WARNING | 1 | $39.95 | |
| 6 | 6611-862 | DECAL,HOOD-CONSOLE-GRN RH | 1 | $65.95 | |
| 6 | 6611-863 | DECAL,HOOD-CONSOLE-GRN LH | 1 | $67.95 | |
| 6 | 6611-926 | DECAL,HOOD-CONSOLE-ORN RH | 1 | $98.95 | |
| 6 | 6611-927 | DECAL,HOOD-CONSOLE-ORN LH | 1 | $90.95 | |
| 6 | 6611-894 | DECAL,HOOD-CONSOLE-BLK RH | 1 | $24.95 | |
| 6 | 6611-895 | DECAL,HOOD-CONSOLE-BLK LH | 1 | $24.95 | |
| 7 | 6611-866 | DECAL,HOOD-LWR GRN RH-"F6" | 1 | $171.95 | |
| 7 | 6611-867 | DECAL,HOOD-LWR GRN LH-"F6" | 1 | $168.95 | |
| 7 | 6611-930 | DECAL,HOOD-LWR ORN RH "F6" | 1 | $259.95 | |
| 7 | 6611-931 | DECAL,HOOD-LWR ORN LH "F6" | 1 | $87.95 | |
| 7 | 6611-898 | DECAL,HOOD-LWR BLK RH "F6" | 1 | $92.95 | |
| 7 | 6611-899 | DECAL,HOOD-LWR BLK LH "F6" | 1 | $92.95 | |
| 8 | 6611-874 | DECAL,HOOD LIGHT-GRN RH "600 EFI" | 1 | $88.95 | |
| 8 | 6611-875 | DECAL,HOOD LIGHT-GRN LH "600 EFI" | 1 | $88.95 | |
| 8 | 6611-938 | DECAL,HOOD LIGHT-ORN RH "600 EFI" | 1 | $22.01 | |
| 8 | 6611-939 | DECAL,HOOD LIGHT-ORN LH "600 EFI" | 1 | $194.95 | |
| 8 | 6611-906 | DECAL,HOOD LIGHT-BLK RH "600 EFI" | 1 | $21.95 | |
| 8 | 6611-907 | DECAL,HOOD LIGHT-BLK LH "600 EFI" | 1 | $21.95 | |
| 9 | 6611-878 | DECAL,HOOD-UPR GRN RH | 1 | $259.95 | |
| 9 | 6611-879 | DECAL,HOOD-UPR GRN LH | 1 | $84.95 | |
| 9 | 6611-942 | DECAL,HOOD-UPR ORN RH | 1 | $96.95 | |
| 9 | 6611-943 | DECAL,HOOD-UPR ORN LH | 1 | $167.95 | |
| 9 | 6611-910 | DECAL,HOOD-UPR BLK RH | 1 | $54.95 | |
| 9 | 6611-911 | DECAL,HOOD-UPR BLK LH | 1 | $54.95 | |
| 10 | 0617-466 | FOAM,HOOD | 1 | $215.95 | |
| 11 | 3606-150 | SCREEN,HOOD-AIR INTAKE | 1 | $79.95 | |
| 12 | 2606-801 | O-RING,HOOD | 1 | $5.92 | |
| 13 | 1718-843 | COVER, HOOD-BLK W/GRN DECALS | 1 | $657.95 | |
| 13 | 1718-845 | COVER, HOOD-BLK W/ORN DECALS | 1 | $324.95 | |
| 13 | 1718-844 | COVER, HOOD-BLK W/BLK DECALS | 1 | $245.95 | |
| 14 | 2706-031 | COVER,HOOD-SNOW SEPERATOR-PTD BLK | 1 | $574.95 | |
| 15 | 3611-679 | DECAL,HOOD-"ARCTIC CAT"- WHITE (CURVED) | 1 | $45.95 | |
| 16 | 6611-860 | DECAL,COVER-GRN RH | 1 | $19.25 | |
| 16 | 6611-861 | DECAL,COVER-GRN LH | 1 | $19.25 | |
| 16 | 6611-924 | DECAL,COVER-ORN RH | 1 | $171.95 | |
| 16 | 6611-925 | DECAL,COVER-ORN LH | 1 | $90.95 | |
| 16 | 6611-892 | DECAL,COVER-BLK RH | 1 | $52.95 | |
| 16 | 6611-893 | DECAL,COVER-BLK LH | 1 | $50.95 | |
| 17 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 18 | 0623-302 | SCREW,SELF TAP-HWH #12X1/2 TYPE | 1 | $0.26 | |
| 19 | 2606-726 | CABLE,HOOD-17.00 | 1 | $20.63 | |
| 20 | 1623-052 | NUT,U | 1 | $0.95 | |
| 21 | 4606-024 | WINDSHIELD,BLK-W/GRN GRAPHIC | 1 | $185.95 | |
| 21 | 4606-026 | WINDSHIELD,BLK-W/ORG GRAPHIC | 1 | $206.95 | |
| 21 | 4606-025 | WINDSHIELD,BLK-W/BLK GRAPHIC | 1 | $193.95 | |
| 22 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 23 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 24 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 25 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 26 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 27 | 0123-394 | CLIP CABLE | 1 | $1.37 |
