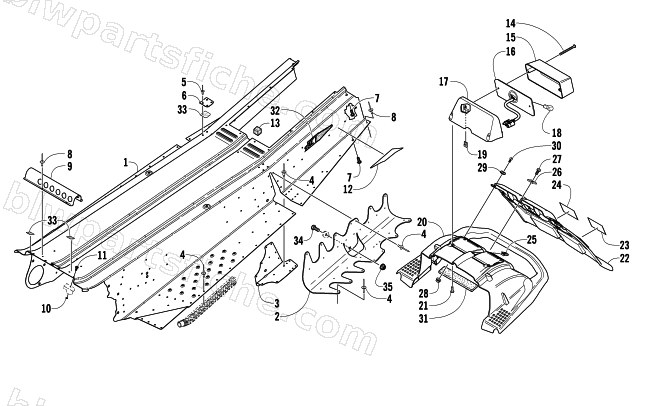

2006 Arctic Cat FIRECAT 600 EFI SNO PRO — TUNNEL, REAR BUMPER, AND TAILLIGHT ASSEMBLY
2006 FIRECAT 600 EFI SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1707-085 | CHASSIS/TUNNEL-S/P ASSY(06 F.C.) | 1 | $1,277.29 | |
| 1 | 1718-777 | TUNNEL,S/P ASSY-05 F.C. | 1 | $1,556.95 | |
| 2 | 3606-780 | BRKT,REAR SUSP MTG-RH | 1 | $94.95 | |
| 2 | 3606-781 | BRKT,REAR SUSP MTG-LH | 1 | $94.95 | |
| 3 | 2706-234 | PLATE,BACKING-REAR SUSP-RH PTD BLK | 1 | $26.95 | |
| 3 | 2706-235 | PLATE,BACKING-REAR SUSP-LH PTD BLK | 1 | $26.95 | |
| 4 | 0623-072 | RIVET,SOLID ALUM-156 X370 | 1 | $0.15 | |
| 4 | 0123-418 | RIVET, SOLID ALUM-.156 X.312 | 1 | $0.68 | |
| 4 | 0623-806 | RIVET, SOLID-.156 X.437-ALUM | 1 | $0.26 | |
| 4 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 5 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 6 | 3606-818 | BRKT,SUPPORT-ETT TUNNEL | 1 | $60.95 | |
| 7 | 1623-022 | SCREW,48-2 TXSPNH 1/4-10X.625 Z&Y | 1 | $6.47 | |
| 8 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 9 | 2606-938 | PROTECTOR,WIRING-DRIVEN SHAFT | 1 | $13.95 | |
| 10 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 11 | 8017-399 | SCREW,MACH-TSTRH 10-24X5/8 GR2 Z&Y | 1 | $1.37 | |
| 12 | 6611-688 | DECAL, REFLECTOR-RH | 1 | $15.11 | |
| 12 | 6611-689 | DECAL, REFLECTOR-LH | 1 | $15.11 | |
| 13 | 0617-455 | FOAM, REAR HEAT EXCH-BLOCK | 1 | $1.95 | |
| 14 | 0623-204 | SCREW, MACH - PHPNH, #10-32X2.5 BLK | 1 | $0.95 | |
| 15 | 0609-229 | LENS,TAILLIGHT | 1 | $32.95 | |
| 16 | 0609-230 | HOUSING,TAILLIGHT-W/SOCKET | 1 | $65.95 | |
| 17 | 0609-624 | HOUSING, TAILLIGHT-BLK | 1 | $72.95 | |
| 18 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 19 | 1623-023 | NUT,SPEED-#10-32 U TYPE | 1 | $1.50 | |
| 20 | 3606-292 | BUMPER, RR-PLASTIC-BLACK | 1 | $275.95 | |
| 21 | 1623-109 | SCREW,PLASTITE-TSFH 1/4-10X.500 Z&Y | 1 | $0.75 | |
| 22 | 4606-027 | SNOWFLAP,BLK-W/6611-859 DECAL | 1 | $85.95 | |
| 23 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 24 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 25 | 0623-363 | NUT SPEED 1/4-20 U-TYPE 1 BLK | 1 | $1.50 | |
| 26 | 1623-399 | WASHER, SNOWFLAP | 1 | $14.95 | |
| 27 | 8017-579 | SCREW,MACH-TSTRH 1/4-20X.625 G2 Z&Y | 1 | $6.83 | |
| 28 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 29 | 1623-242 | WASHER,BACKING-7MM IDX11/8OD-BLK | 1 | $2.47 | |
| 30 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 31 | 0617-456 | FOAM, REAR HEAT EXCH-STRIP | 1 | $4.95 | |
| 32 | 6611-526 | DECAL,"ACT DRIVE" (ORN) | 1 | $20.63 | |
| 33 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 34 | 8002-220 | SCREW,CAP-HH 3/8-16 X.75 G5 Z&Y | 1 | $0.95 | |
| 35 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 |
