2006 Arctic Cat FIRECAT 700 EFI LIMITED EDITION — A-ARM ASSEMBLY TONY STEWART LIMITED EDITION
2006 FIRECAT 700 EFI LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

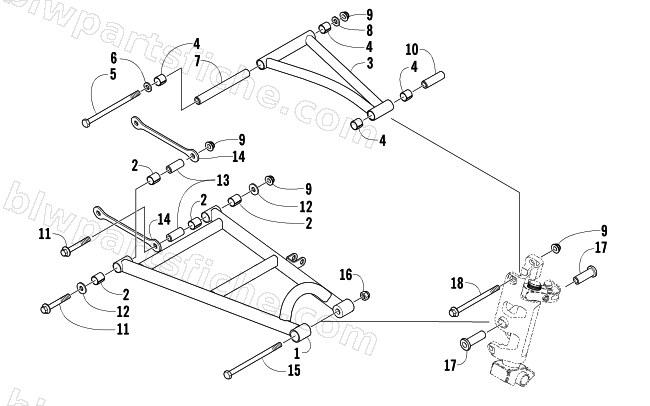

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1703-668 | A-ARM,FRT LWR-FABR-RH PLAT | 1 | $216.95 | |
| 1 | 1703-669 | A-ARM,FRT LWR-FABR-LH PLAT | 1 | $216.95 | |
| 2 | 1603-895 | BEARING, 10DU10-FRONT SUSPENSION | 1 | $5.37 | |
| 3 | 1703-094 | A-ARM, UPPER-FABR | 1 | $159.95 | |
| 4 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 5 | 0623-952 | SCREW,CAP-HH 3/8-16X7.25 | 1 | $3.85 | |
| 6 | 1623-415 | WASHER,FLAT-.875X.400X.156 Z&Y | 1 | $8.21 | |
| 7 | 1603-563 | AXLE,UPPER ARM-INNER | 1 | $34.95 | |
| 8 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 9 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 10 | 0603-864 | TUBE, AXLE | 1 | $17.87 | |
| 11 | 1623-403 | SCREW,CAP-HFH 3/8-16X2.625 GR 5 Z&Y | 1 | $4.95 | |
| 12 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 13 | 2603-305 | AXLE,A-ARM-LWR INNER | 1 | $15.11 | |
| 14 | 4606-402 | BRACE,A-ARM-LOWER | 1 | $8.21 | |
| 15 | 1623-009 | SCREW, CAP-HH 7/16-14X4.75 GR8 Z&Y | 1 | $4.68 | |
| 16 | 8040-546 | NUT,HEX LOCK-NYL 7/16-14 Z&Y | 1 | $0.45 | |
| 17 | 1603-616 | AXLE, PWD METAL-7/16 | 1 | $6.89 | |
| 18 | 8026-232 | SCREW,CAP-HFH 3/8-16 X 3.25 GR8 Z&Y | 1 | $5.37 |
