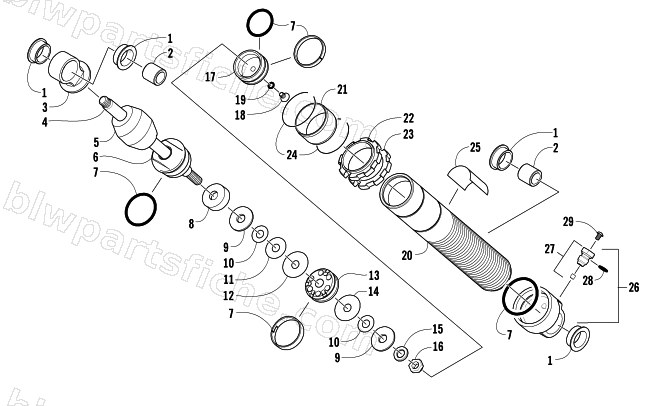

2006 Arctic Cat FIRECAT 700 EFI LIMITED EDITION — FRONT SUSPENSION SHOCK ABSORBER
2006 FIRECAT 700 EFI LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1703-940 | SHOCK,SKI-ZERO PRO | 1 | $406.95 | |
| 0 | 4639-368 | S/M SYN SHOCK OIL MED WT-1 QUART | 1 | $27.95 | |
| 1 | 0603-955 | BUSHING, SKI SHOCK-.045" LIP | 1 | $9.59 | |
| 2 | 1603-209 | SLEEVE, EYELET - INNER - .790 TLG | 1 | $1.23 | |
| 3 | 0603-910 | EYELET,SHOCK-FR SUSP(FOX ONLY) | 1 | $97.95 | |
| 4 | 2603-192 | SHAFT,SHOCK- CHROME.498 OD X 9.510 TLG | 1 | $70.95 | |
| 5 | 2603-284 | BUMPER,BLACK | 1 | $35.95 | |
| 6 | 2604-413 | BEARING,ENDCAP.498" X 1.21"-ASSY | 1 | $151.95 | |
| 7 | 2604-815 | SEAL/BEARING-REBUILD KIT | 1 | $92.95 | |
| 8 | 2603-194 | SPACER, .500 | 1 | $36.95 | |
| 9 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 10 | 2603-045 | VALVE,SHOCK- .700 DIA X .010 | 1 | $5.95 | |
| 11 | 0603-342 | VALVE,1.100X.006(3/8ID) | 1 | $6.95 | |
| 12 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 13 | 2603-605 | PISTON,DAMPING-1.459 BORE-.120 ORIFICE | 1 | $117.95 | |
| 14 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 15 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 16 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 17 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 18 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 19 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 20 | 2603-222 | BODY,SHOCK-ALUM-10.03 TLG | 1 | $213.95 | |
| 21 | 2603-246 | GUIDE,SPRING-ALUM BODY | 1 | $26.95 | |
| 22 | 2604-840 | RING,PRELOAD-2.40 OD X .600 TLG | 1 | $50.95 | |
| 23 | 2604-841 | RING,PRELOAD LOCK-2.40 OD X .300 TLG | 1 | $50.95 | |
| 24 | 2603-245 | RETAINER,.062 CS X 1.54 OD-WEAR SLEEVE | 1 | $6.89 | |
| 25 | 2604-897 | DECAL,SHOCK-ZERO PRO 5.1X1.375(2005) | 1 | $23.39 | |
| 26 | 2604-817 | BODY,CAP-ALUM BODY-ASSY | 1 | $164.95 | |
| 27 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 28 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 29 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 |
