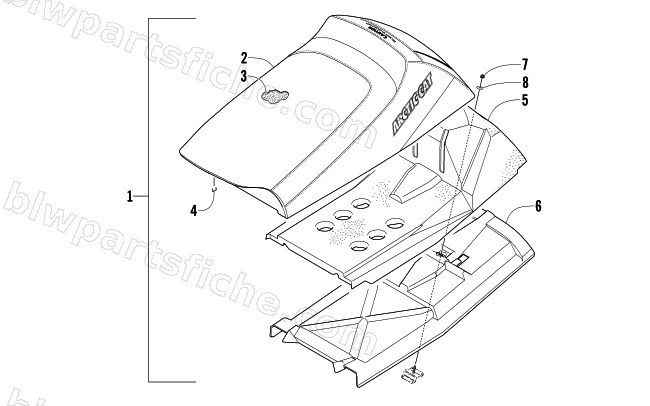

2006 Arctic Cat FIRECAT 700 EFI LIMITED EDITION — SEAT ASSEMBLY
2006 FIRECAT 700 EFI LIMITED EDITION
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3706-230 | COVER,SEAT-ORN W/DECAL | 1 | $378.95 | |
| 3 | 0717-196 | FOAM,SEAT (92-97 ILD).50R@5.6 | 1 | $112.95 | |
| 4 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 5 | 0617-438 | FOAM,SEAT-LWR | 1 | $143.95 | |
| 6 | 2606-907 | BASE,SEAT-PLASTIC | 1 | $296.95 | |
| 7 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 8 | 0623-875 | WASHER, BACKING-7MM ID X 11/8OD | 1 | $1.78 |
