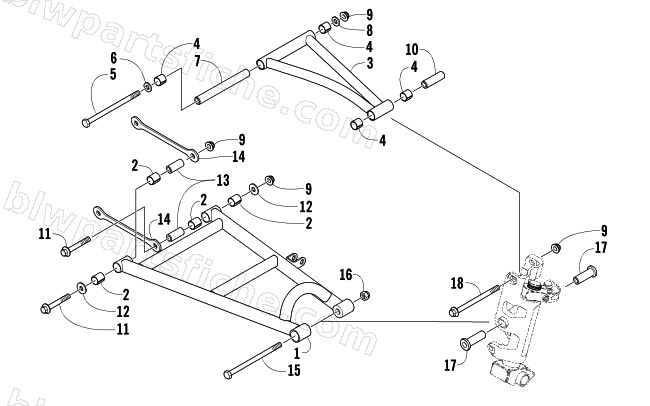

A-ARM ASSEMBLY
2006 FIRECAT 700 EFI SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1703-668 | A-ARM,FRT LWR-FABR-RH PLAT | 1 | $216.95 | |
| 1 | 1703-669 | A-ARM,FRT LWR-FABR-LH PLAT | 1 | $216.95 | |
| 2 | 1603-895 | BEARING, 10DU10-FRONT SUSPENSION | 1 | $5.37 | |
| 3 | 1703-094 | A-ARM, UPPER-FABR | 1 | $159.95 | |
| 4 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 5 | 0623-952 | SCREW,CAP-HH 3/8-16X7.25 | 1 | $3.85 | |
| 6 | 1623-415 | WASHER,FLAT-.875X.400X.156 Z&Y | 1 | $8.21 | |
| 7 | 1603-563 | AXLE,UPPER ARM-INNER | 1 | $34.95 | |
| 8 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 9 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 10 | 0603-864 | TUBE, AXLE | 1 | $17.87 | |
| 11 | 1623-403 | SCREW,CAP-HFH 3/8-16X2.625 GR 5 Z&Y | 1 | $4.95 | |
| 12 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 13 | 2603-305 | AXLE,A-ARM-LWR INNER | 1 | $15.11 | |
| 14 | 4606-402 | BRACE,A-ARM-LOWER | 1 | $8.21 | |
| 15 | 1623-009 | SCREW, CAP-HH 7/16-14X4.75 GR8 Z&Y | 1 | $4.68 | |
| 16 | 8040-546 | NUT,HEX LOCK-NYL 7/16-14 Z&Y | 1 | $0.45 | |
| 17 | 1603-616 | AXLE, PWD METAL-7/16 | 1 | $6.89 | |
| 18 | 8026-232 | SCREW,CAP-HFH 3/8-16 X 3.25 GR8 Z&Y | 1 | $5.37 |
