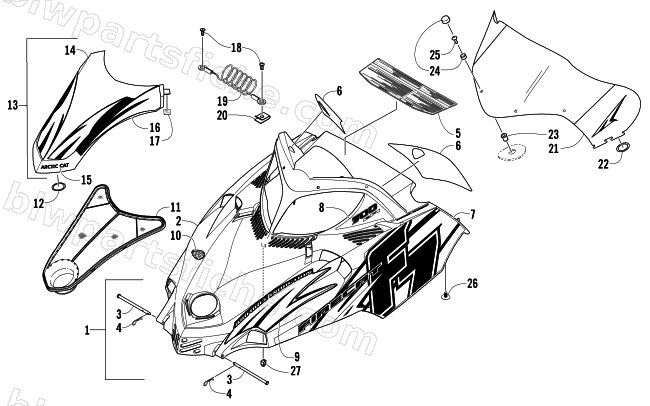

2006 Arctic Cat FIRECAT 700 EFI SNO PRO — HOOD AND WINDSHIELD ASSEMBLY
2006 FIRECAT 700 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-838 | HOOD W/DECALS-BLK (F7 EFI) | 1 | $1,328.95 | |
| 1 | 1718-834 | HOOD W/DECALS-F7 EFI-GRN | 1 | $1,328.95 | |
| 1 | 1718-842 | HOOD W/DECALS-F7 EFI-ORN | 1 | $1,564.95 | |
| 2 | 1718-636 | HOOD W/O DECALS-BLK | 1 | $1,242.95 | |
| 2 | 1718-666 | HOOD W/O DECALS-PEARL CAT GRN | 1 | $1,090.95 | |
| 2 | 1718-638 | HOOD W/O DECALS-ORN | 1 | $1,242.95 | |
| 3 | 1623-026 | PIN,CLEVIS-1/4 | 1 | $33.95 | |
| 4 | 0623-847 | CLIP, HAIRPIN | 1 | $0.95 | |
| 5 | 4611-496 | DECAL, CAUTION/WARNING | 1 | $39.95 | |
| 6 | 6611-894 | DECAL,HOOD-CONSOLE-BLK RH | 1 | $24.95 | |
| 6 | 6611-895 | DECAL,HOOD-CONSOLE-BLK LH | 1 | $24.95 | |
| 6 | 6611-862 | DECAL,HOOD-CONSOLE-GRN RH | 1 | $65.95 | |
| 6 | 6611-863 | DECAL,HOOD-CONSOLE-GRN LH | 1 | $67.95 | |
| 6 | 6611-926 | DECAL,HOOD-CONSOLE-ORN RH | 1 | $98.95 | |
| 6 | 6611-927 | DECAL,HOOD-CONSOLE-ORN LH | 1 | $90.95 | |
| 7 | 6611-900 | DECAL,HOOD-LWR BLK RH "F7" | 1 | $168.95 | |
| 7 | 6611-901 | DECAL,HOOD-LWR BLK LH "F7" | 1 | $134.95 | |
| 7 | 6611-868 | DECAL,HOOD-LWR GRN RH-"F7" | 1 | $136.95 | |
| 7 | 6611-869 | DECAL,HOOD-LWR GRN LH-"F7" | 1 | $251.95 | |
| 7 | 6611-932 | DECAL,HOOD-LWR ORN RH "F7" | 1 | $141.95 | |
| 7 | 6611-933 | DECAL,HOOD-LWR ORN LH "F7" | 1 | $171.95 | |
| 8 | 6611-908 | DECAL,HOOD LIGHT-BLK RH "700 EFI" | 1 | $29.95 | |
| 8 | 6611-909 | DECAL,HOOD LIGHT-BLK LH "700 EFI" | 1 | $129.95 | |
| 8 | 6611-876 | DECAL,HOOD LIGHT-GRN RH "700 EFI" | 1 | $106.95 | |
| 8 | 6611-877 | DECAL,HOOD LIGHT-GRN LH "700 EFI" | 1 | $166.95 | |
| 8 | 6611-940 | DECAL,HOOD LIGHT-ORN RH "700 EFI" | 1 | $133.95 | |
| 8 | 6611-941 | DECAL,HOOD LIGHT-ORN LH "700 EFI" | 1 | $133.95 | |
| 9 | 6611-910 | DECAL,HOOD-UPR BLK RH | 1 | $54.95 | |
| 9 | 6611-911 | DECAL,HOOD-UPR BLK LH | 1 | $54.95 | |
| 9 | 6611-878 | DECAL,HOOD-UPR GRN RH | 1 | $259.95 | |
| 9 | 6611-879 | DECAL,HOOD-UPR GRN LH | 1 | $84.95 | |
| 9 | 6611-942 | DECAL,HOOD-UPR ORN RH | 1 | $96.95 | |
| 9 | 6611-943 | DECAL,HOOD-UPR ORN LH | 1 | $167.95 | |
| 10 | 0617-466 | FOAM,HOOD | 1 | $215.95 | |
| 11 | 3606-150 | SCREEN,HOOD-AIR INTAKE | 1 | $79.95 | |
| 12 | 2606-801 | O-RING,HOOD | 1 | $5.92 | |
| 13 | 1718-844 | COVER, HOOD-BLK W/BLK DECALS | 1 | $245.95 | |
| 13 | 1718-843 | COVER, HOOD-BLK W/GRN DECALS | 1 | $657.95 | |
| 13 | 1718-845 | COVER, HOOD-BLK W/ORN DECALS | 1 | $324.95 | |
| 14 | 2706-031 | COVER,HOOD-SNOW SEPERATOR-PTD BLK | 1 | $574.95 | |
| 15 | 3611-679 | DECAL,HOOD-"ARCTIC CAT"- WHITE (CURVED) | 1 | $45.95 | |
| 16 | 6611-892 | DECAL,COVER-BLK RH | 1 | $52.95 | |
| 16 | 6611-893 | DECAL,COVER-BLK LH | 1 | $50.95 | |
| 16 | 6611-860 | DECAL,COVER-GRN RH | 1 | $19.25 | |
| 16 | 6611-861 | DECAL,COVER-GRN LH | 1 | $19.25 | |
| 16 | 6611-924 | DECAL,COVER-ORN RH | 1 | $171.95 | |
| 16 | 6611-925 | DECAL,COVER-ORN LH | 1 | $90.95 | |
| 17 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 18 | 0623-302 | SCREW,SELF TAP-HWH #12X1/2 TYPE | 1 | $0.26 | |
| 19 | 2606-726 | CABLE,HOOD-17.00 | 1 | $20.63 | |
| 20 | 1623-052 | NUT,U | 1 | $0.95 | |
| 21 | 4606-025 | WINDSHIELD,BLK-W/BLK GRAPHIC | 1 | $193.95 | |
| 21 | 4606-024 | WINDSHIELD,BLK-W/GRN GRAPHIC | 1 | $185.95 | |
| 21 | 4606-026 | WINDSHIELD,BLK-W/ORG GRAPHIC | 1 | $206.95 | |
| 22 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 23 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 24 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 25 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 26 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 27 | 0123-394 | CLIP CABLE | 1 | $1.37 |
