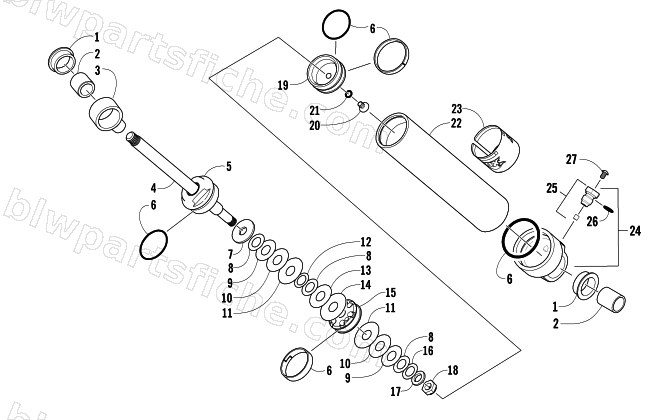

2006 Arctic Cat FIRECAT 700 EFI — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2006 FIRECAT 700 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1704-454 | SHOCK,REAR ARM-ZERO PRO | 1 | $446.95 | |
| 0 | 4639-368 | S/M SYN SHOCK OIL MED WT-1 QUART | 1 | $27.95 | |
| 1 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 2 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 3 | 0604-893 | EYELET, SHOCK(FOX ONLY) | 1 | $81.95 | |
| 5 | 2604-413 | BEARING,ENDCAP.498" X 1.21"-ASSY | 1 | $151.95 | |
| 6 | 2604-815 | SEAL/BEARING-REBUILD KIT | 1 | $92.95 | |
| 7 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 8 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 9 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 10 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 11 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 12 | 0603-731 | VALVE, .700X.004(3/8ID) | 1 | $13.95 | |
| 13 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 14 | 0603-350 | VALVE,1.300X.010(3/8ID) | 1 | $17.95 | |
| 15 | 2603-482 | PISTON,.046 ORIFICE- (FOX) | 1 | $62.95 | |
| 16 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 17 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 18 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 19 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 20 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 21 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 22 | 2604-864 | BODY,SHOCK - ALUM-7.25" | 1 | $212.95 | |
| 23 | 2604-897 | DECAL,SHOCK-ZERO PRO 5.1X1.375(2005) | 1 | $23.39 | |
| 24 | 2604-817 | BODY,CAP-ALUM BODY-ASSY | 1 | $164.95 | |
| 25 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 26 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 27 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 |
