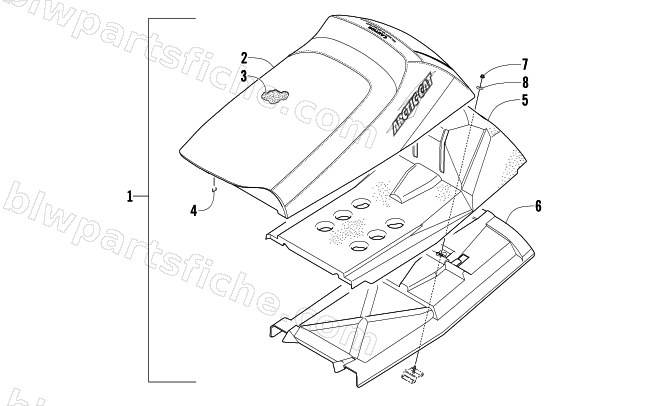

2006 Arctic Cat FIRECAT 700 EFI — SEAT ASSEMBLY
2006 FIRECAT 700 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 7998-616 | SEAT,ORG-MFG ASSY | 1 | $642.95 | |
| 1 | 7998-614 | SEAT,GRN-MFG ASSY | 1 | $874.95 | |
| 2 | 3706-053 | COVER,SEAT-ORG W/TRANSFER | 1 | $408.95 | |
| 2 | 3706-051 | COVER,SEAT-GRN W/TRANSFER | 1 | $408.95 | |
| 3 | 0717-196 | FOAM,SEAT (92-97 ILD).50R@5.6 | 1 | $112.95 | |
| 4 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 5 | 0617-438 | FOAM,SEAT-LWR | 1 | $143.95 | |
| 6 | 2606-907 | BASE,SEAT-PLASTIC | 1 | $296.95 | |
| 7 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 8 | 0623-875 | WASHER, BACKING-7MM ID X 11/8OD | 1 | $1.78 |
