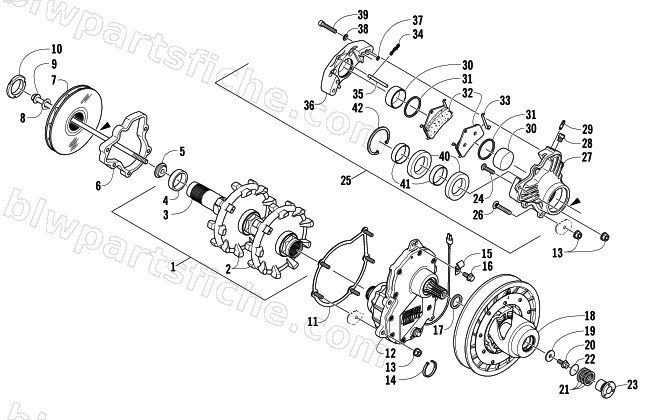

2006 Arctic Cat FIRECAT 700 — DRIVE TRAIN AND BRAKE ASSEMBLIES
2006 FIRECAT 700
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0728-131 | TRACK/DRIVE-10T ASSY | 1 | $369.95 | |
| 2 | 1602-783 | SPROCKET,DRIVE-10T-45MM HEX | 1 | $66.95 | |
| 3 | 1602-759 | SHAFT, DRIVE-45MM HEX (F2) | 1 | $359.95 | |
| 4 | 1602-315 | COLLAR,DRIVE-SHAFT-45MM HEX | 1 | $57.95 | |
| 5 | 1602-791 | INSERT,DRIVE SHAFT | 1 | $14.95 | |
| 6 | 1602-480 | SPACER, BRAKE | 1 | $53.95 | |
| 7 | 1602-656 | BRAKE,DISC-ACT DRIVE | 1 | $267.95 | |
| 8 | 1623-445 | WASHER,COPPER- 1.0 X 1/2 X .093 | 1 | $3.44 | |
| 10 | 1602-355 | NUT,RETAINING-SHAFT-1 -5/8-16 | 1 | $34.95 | |
| 11 | 0702-529 | PLATE,MTG-ACT DRIVE-PTD BLK | 1 | $37.95 | |
| 12 | 0702-792 | GEARCASE,DRIVE-65T/55T 5P-ASSY | 1 | $1,259.95 | |
| 13 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 14 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 15 | 1623-390 | CLAMP,HALF | 1 | $4.40 | |
| 16 | 8020-131 | SCREW,CAP-HFH 5/16-18 X0.875 G5 Z&Y | 1 | $1.50 | |
| 17 | 0648-442 | WASHER,FLAT-1.188 X 1.730 X .030 | 1 | $10.97 | |
| 17 | 0648-443 | WASHER,FLAT-1.188 X 1.730 X .060 | 1 | $1.37 | |
| 18 | 0726-215 | CLUTCH,DRIVEN-10.4-(44/40 GREEN) | 1 | $657.95 | |
| 20 | 1623-275 | SCREW,CAP-HFH 3/8-16 X 1.00 G5 Z&Y-VNT | 1 | $6.95 | |
| 21 | 0648-714 | WASHER, DRIVEN .090 THICK | 1 | $2.06 | |
| 21 | 0648-715 | WASHER, DRIVEN .030 THICK | 1 | $1.23 | |
| 21 | 0648-716 | WASHER, DRIVEN .060 THICK | 1 | $3.44 | |
| 22 | 0648-441 | O-RING,ADJUSTER SHEAVE (2-121) | 1 | $0.54 | |
| 23 | 0648-741 | ADJUSTER,SHEAVE-DRVN(LH) | 1 | $39.95 | |
| 24 | 8017-676 | SCREW,MACH-TSTRH 5/16-18 X 1.75 GR2 Z&Y | 1 | $1.95 | |
| 25 | 0702-655 | CALIPER,BRAKE-W/BOLTS ASSY | 1 | $513.95 | |
| 26 | 1623-359 | BOLT,RIBBED CAR-5/16-18X1.75 | 1 | $2.06 | |
| 28 | 0602-590 | FITTING,ADAPTER-1/8 NPT/DBL FLARE | 1 | $5.45 | |
| 29 | 1602-458 | FITTING,BLEED SCREW INSERT-1/4-28 | 1 | $4.26 | |
| 30 | 1602-461 | PISTON,STAINLESS-1.93X.79 | 1 | $86.95 | |
| 31 | 1602-669 | O-RING,SQUARE-PISTON | 1 | $20.63 | |
| 32 | 0702-563 | KIT,BRAKE PAD | 1 | $117.95 | |
| 33 | 1602-466 | CLIP, ANTI-RATTLE | 1 | $9.59 | |
| 34 | 1602-467 | CLIP,RETAINING-HAIRPIN | 1 | $6.06 | |
| 35 | 1602-464 | PIN,PAD RETAINER | 1 | $6.06 | |
| 37 | 0602-729 | O-RING,BRAKE HOUSING | 1 | $5.65 | |
| 38 | 0402-165 | WASHER-HYD BRAKE | 1 | $3.02 | |
| 39 | 1602-671 | BOLT,SHCS 5/16-18 UNC-2A 2.00 LG | 1 | $5.09 | |
| 40 | 2602-131 | BEARING,45MM X 68MM X 12MM | 1 | $57.95 | |
| 41 | 1602-463 | SLEEVE,SHAFT | 1 | $32.95 | |
| 42 | 1602-456 | RING,RETAINING-2.98 | 1 | $27.95 |
