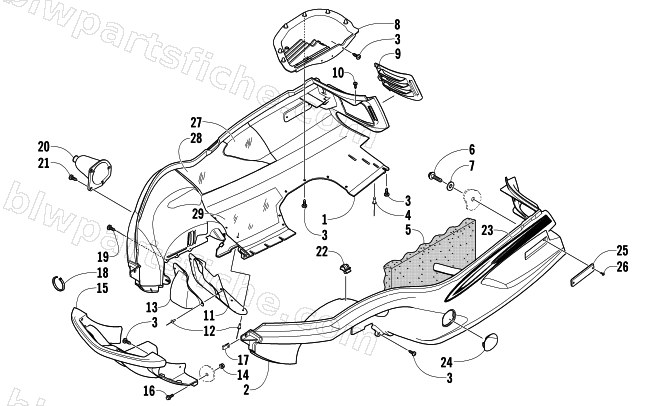

2006 Arctic Cat KING CAT 900 EFI — BELLY PAN AND FRONT BUMPER ASSEMBLY
2006 KING CAT 900 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3706-068 | BELLYPAN,R/H-BLACK-ROUTED | 1 | $186.95 | |
| 2 | 2706-665 | BELLYPAN,L/H (BLK)-ROUTED | 1 | $184.95 | |
| 3 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 4 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 5 | 0617-315 | FOAM,BELLYPAN LH | 1 | $33.95 | |
| 6 | 0623-647 | SCREW,SELF TAP-HWH 1/4X2.0 A Z&Y | 1 | $0.95 | |
| 7 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 9 | 1606-044 | LOUVER, AIR INTAKE-RH-BLK | 1 | $46.95 | |
| 9 | 1606-045 | LOUVER, AIR INTAKE-LH-BLK | 1 | $46.95 | |
| 10 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 11 | 1712-253 | SHIELD,HEAT-EXHAUST OUTLET-PTD BLK | 1 | $85.95 | |
| 12 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 | |
| 13 | 1612-906 | DEFLECTOR,EXHAUST OUTLET | 1 | $34.95 | |
| 14 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 15 | 2706-426 | BUMPER,FRONT-DK PEWTER-ROUTED | 1 | $155.95 | |
| 16 | 8020-041 | SCREW,CAP-HFH 1/4-20 X 0.875 Z&Y | 1 | $6.47 | |
| 17 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 18 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 19 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 20 | 0605-332 | BOOT,STEERING-DRAG LINK-RH | 1 | $40.95 | |
| 20 | 0605-333 | BOOT,STEERING-DRAG LINK-LH | 1 | $28.95 | |
| 21 | 0623-564 | SCREW,TAPPING #10 X 1.00 HWH | 1 | $3.57 | |
| 22 | 0623-403 | CLAMP,PUSH MOUNT | 1 | $0.95 | |
| 23 | 6611-840 | DECAL,BELLYPAN-R/H | 1 | $52.95 | |
| 23 | 6611-841 | DECAL,BELLYPAN-L/H | 1 | $52.95 | |
| 24 | 1606-767 | PANEL, CLUTCH ACCESS-BLK | 1 | $33.95 | |
| 25 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 26 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 27 | 2606-375 | FOIL, PROTECTIVE,UPPER REAR | 1 | $15.11 | |
| 28 | 2606-376 | FOIL, PROTECTIVE,UPPER FRONT | 1 | $27.95 | |
| 29 | 4606-347 | FOIL,PROTECTIVE-BELLYPAN-LOWER | 1 | $10.95 |
