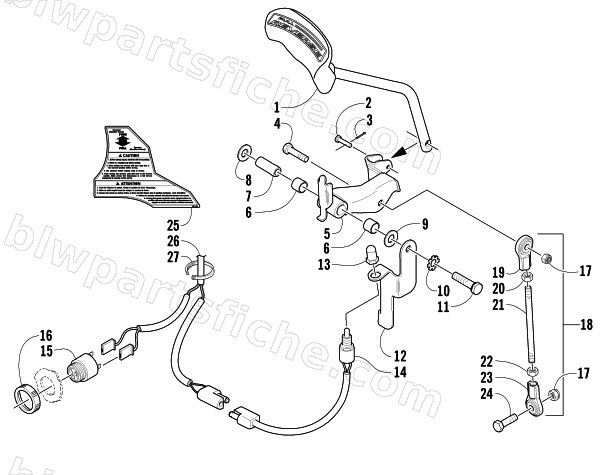

2006 Arctic Cat KING CAT 900 EFI — REVERSE SHIFT LEVER ASSEMBLY (OPTIONAL)
2006 KING CAT 900 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1602-424 | LEVER,REVERSE-ASSY | 1 | $81.95 | |
| 2 | 0623-641 | PIN,CLEVIS-3/16X1 | 1 | $1.19 | |
| 4 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 | |
| 5 | 0702-496 | LINK,SHIFT PIVOT-W/BUSHINGS | 1 | $79.95 | |
| 6 | 0602-844 | BEARING, (GARLOCK 08DU08) SHOCK END .500 | 1 | $3.16 | |
| 7 | 0602-853 | AXLE,PIVOT LINK | 1 | $12.95 | |
| 8 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 9 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 10 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 11 | 8002-140 | SCREW,CAP-HH 5/16-18 X2.75 G5 Z&Y | 1 | $1.23 | |
| 12 | 0702-465 | BRKT,REV.SWITCH-PTD BLK | 1 | $13.95 | |
| 13 | 0630-013 | BOOT,SWITCH-REVERSE | 1 | $20.63 | |
| 14 | 0630-011 | SWITCH, ALARM | 1 | $60.95 | |
| 15 | 0630-010 | ALARM,REVERSE | 1 | $112.95 | |
| 16 | 0630-017 | RING,RETAINING-REV ALARM | 1 | $12.35 | |
| 17 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 18 | 0702-495 | LINK,SHIFT ROD-ASSY | 1 | $74.95 | |
| 19 | 0602-305 | ROD END L.H. 5/16-24 UNF | 1 | $22.95 | |
| 20 | 0623-260 | NUT,HEX JAM 5/16-24 NF L H | 1 | $1.09 | |
| 22 | 0123-144 | NUT,HEX-JAM 5/16-24 NF ZN | 1 | $0.26 | |
| 23 | 0602-322 | ROD END,5/16-24-RH | 1 | $29.95 | |
| 24 | 8002-132 | SCREW,CAP-HH 5/16-18 X1.00 G5 Z&Y | 1 | $0.95 | |
| 25 | 3611-364 | DECAL, CAUTION - REVERSE | 1 | $34.95 | |
| 25 | 3611-580 | DECAL,REVERSE | 1 | $25.95 | |
| 26 | 0686-120 | HARNESS,WIRING-ALARM | 1 | $41.95 | |
| 27 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
