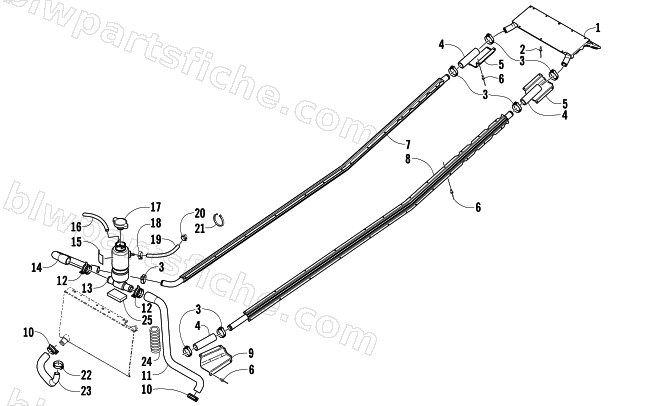

COOLING ASSEMBLY
2006 M7 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2706-656 | HEAT EXCHANGER,REAR-WELDT | 1 | $238.95 | |
| 2 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 3 | 1623-349 | CLAMP,H0SE-CRIMP-31.6 | 1 | $3.99 | |
| 4 | 0610-552 | HOSE,COOLANT-FRT EXCH/LH EXCH | 1 | $16.49 | |
| 5 | 3606-564 | PROTECTOR,HOSE-REAR | 1 | $16.49 | |
| 6 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 6 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 7 | 4606-772 | HEAT EXCH,CORNER-141"-R/H-FORMED | 1 | $121.95 | |
| 8 | 4606-773 | HEAT EXCH,CORNER-141"-L/H-FORMED | 1 | $121.95 | |
| 9 | 3606-565 | PROTECTOR,HOSE-FRONT | 1 | $16.49 | |
| 10 | 1623-229 | CLAMP,SCREW-#012 | 1 | $3.85 | |
| 11 | 0610-625 | HOSE,COOLANT-TANK/THERMOSTAT | 1 | $73.95 | |
| 12 | 1623-322 | CLAMP,HOSE-SPRING (15W X 35) | 1 | $4.26 | |
| 13 | 2706-791 | TANK,COOLANT-W/FITTING | 1 | $65.95 | |
| 15 | 2611-758 | DECAL,FILL LEVEL-COOLANT TANK | 1 | $11.95 | |
| 16 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 16 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 17 | 0606-268 | CAP,MINI RADIATOR-13LBS | 1 | $24.77 | |
| 18 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 19 | 0610-538 | HOSE,VENT- 25' (1054-152) | 1 | $117.95 | |
| 20 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 21 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 22 | 1623-350 | CLAMP,H0SE-CRIMP-25.6 | 1 | $1.50 | |
| 23 | 0610-626 | HOSE,COOLANT-ENG/FRT EXCH | 1 | $37.95 | |
| 24 | 1619-038 | PROTECTOR,HOSE-1.27 X 1.06 X 7.00" | 1 | $6.06 | |
| 25 | 4606-102 | PAD,SUPPORT-COOLANT BOTTLE | 1 | $1.78 |
