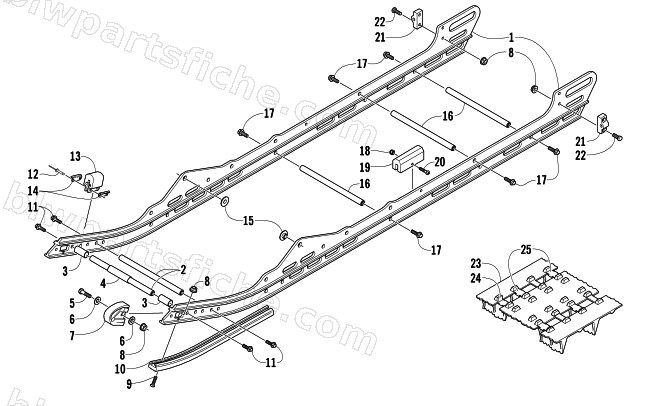

SLIDE RAIL AND TRACK ASSEMBLY
2006 M7 EFI 153 CT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2604-731 | RAIL,SUSP-153" STAMPED-FORMED | 1 | $394.95 | |
| 2 | 0604-426 | AXLE, XBRC-.625X8.750 (5/16-18) | 1 | $34.95 | |
| 3 | 2604-659 | SPACER,AL-.750 X .058 X 1.50 | 1 | $9.95 | |
| 4 | 2604-660 | SPACER,AL-.750 X .058 X 2.50 | 1 | $12.95 | |
| 5 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 6 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 7 | 2604-724 | NOSEPIECE,RAIL-EXVOLUTE-MC | 1 | $19.25 | |
| 8 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 9 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 10 | 2604-799 | WEARSTRIP,162" SLIDE RAIL-BLK | 1 | $38.95 | |
| 11 | 8020-134 | SCREW,CAP-HFH 5/16-18 X 1.25 G5 Z&Y | 1 | $1.50 | |
| 12 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 13 | 0604-918 | PAD,SHOCK-RUBBER | 1 | $13.73 | |
| 14 | 0604-967 | BRACKET,RETAINING-SHOCK PAD | 1 | $3.57 | |
| 15 | 2604-733 | INSERT,RAIL-3/8 X 1.00" | 1 | $12.35 | |
| 16 | 0604-930 | AXLE,XBRC (ALUM) -625X8.750 (3/8-16) | 1 | $37.95 | |
| 17 | 8020-222 | SCREW,CAP-HFH 3/8-16 X 1.00 G5 Z&Y | 1 | $1.37 | |
| 18 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 19 | 1604-607 | PAD,SHOCK-RUBBER PWDR | 1 | $15.11 | |
| 20 | 8017-405 | SCREW,MACH-TSTRH 10-24X1.50 GR2 Z&Y | 1 | $0.95 | |
| 21 | 0704-352 | ADJUSTER,TRACK-MACH. | 1 | $24.77 | |
| 22 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 23 | 1602-995 | TRACK,CHALL-15"X153"X2.25" (3.0 PITCH) | 1 | $1,529.95 | |
| 24 | 1602-899 | R/B 2602-383 | 1 | $5.95 | |
| 25 | 2602-384 | CLIP,WEAR | 1 | $3.57 |
