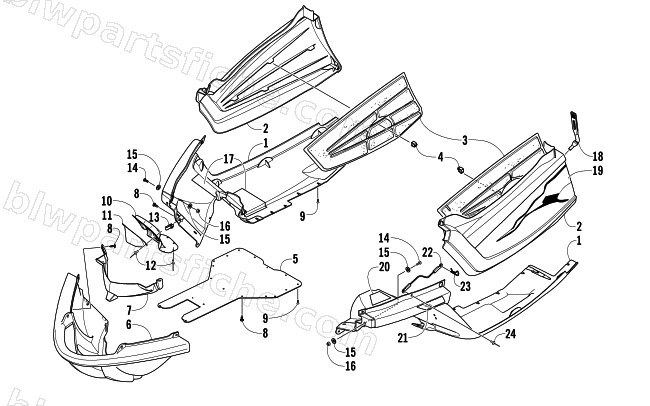

2006 Arctic Cat M7 EFI 153 WEST YELLOWSTONE — BELLY PAN ASSEMBLY
2006 M7 EFI 153 WEST YELLOWSTONE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3706-584 | BELLY PAN-ASSY RH BLK | 1 | $326.95 | |
| 1 | 3706-585 | BELLY PAN-ASSY LH BLK | 1 | $204.95 | |
| 2 | 3706-578 | PANEL,ACCESS-RH-BLK-ASSY | 1 | $142.95 | |
| 2 | 3706-579 | PANEL,ACCESS-LH-BLK-ASSY | 1 | $142.95 | |
| 2 | 3606-871 | PANEL,ACCESS-R/H-GRN-INJ MOLD | 1 | $63.95 | |
| 2 | 3706-581 | PANEL,ACCESS-LH-GRN-ASSY | 1 | $86.95 | |
| 3 | 0617-502 | FOAM,ACOUSTICAL-SIDE PANEL-R/H | 1 | $60.95 | |
| 3 | 0617-503 | FOAM,ACOUSTICAL-SIDE PANEL-L/H | 1 | $60.95 | |
| 4 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 5 | 3606-867 | BELLYPAN,CENTER-BLK | 1 | $60.95 | |
| 6 | 4606-040 | BELLY PAN,FRT BUMPER-BLK | 1 | $232.95 | |
| 6 | 4606-041 | BELLY PAN,FRT BUMPER-PEARL CAT GRN | 1 | $232.95 | |
| 7 | 2606-911 | SCREEN,FRT BUMPER | 1 | $34.95 | |
| 8 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 9 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 10 | 1612-853 | SHIELD,HEAT-EXHAUST OUTLET | 1 | $112.95 | |
| 11 | 1612-861 | DEFLECTOR,EXHAUST OUTLET | 1 | $45.95 | |
| 12 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 | |
| 13 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 14 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 15 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 16 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 17 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 18 | 2606-624 | STRAP,HOLDDOWN-HOOD | 1 | $13.73 | |
| 19 | 7611-018 | DECAL,ACCESS PANEL-RH (BLK) | 1 | $54.95 | |
| 19 | 7611-019 | DECAL,ACCESS PANEL-LH (BLK) | 1 | $54.95 | |
| 19 | 7611-100 | DECAL,ACCESS PANEL-RH (GRN) | 1 | $52.95 | |
| 19 | 7611-101 | DECAL,ACCESS PANEL-LH (GRN) | 1 | $54.95 | |
| 20 | 7611-154 | DECAL,CLUTCHING-2006 M7 EFI | 1 | $29.95 | |
| 21 | 6611-514 | DECAL,REFLECTOR-AMBER-R/H | 1 | $63.95 | |
| 21 | 6611-515 | DECAL,REFLECTOR-AMBER-L/H | 1 | $54.95 | |
| 22 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 23 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 24 | 8061-426 | RIVET,BLIND-LF AA54 BLACK | 1 | $0.95 |
