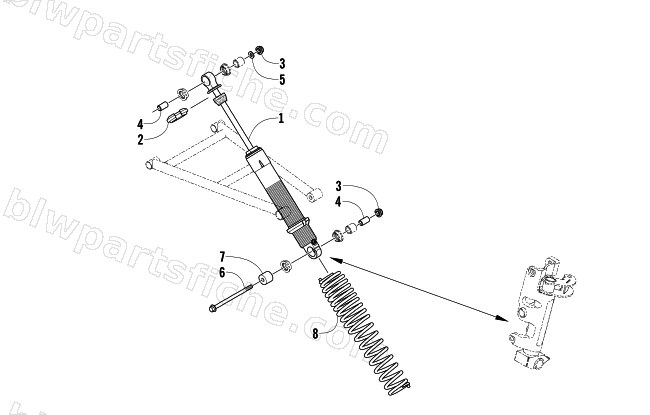

2006 Arctic Cat M7 EFI 162 CT — FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY
2006 M7 EFI 162 CT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2703-554 | SHOCK,SKI-40"- ZERO PRO-(FOX)-17.52" | 1 | $515.95 | |
| 2 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 3 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 4 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 5 | 0623-991 | WSHR, FLAT ALUM-.390 X 1.125 X .125 | 1 | $1.95 | |
| 6 | 8020-232 | SCREW,CAP-HFH 3/8-16 X 3.25 Z&Y | 1 | $5.65 | |
| 7 | 0603-648 | SPACER,SHOCK-MTG | 1 | $15.11 | |
| 8 | 1703-890 | SPRING,SHOCK-SKI(120#X12")-PTD ORN | 1 | $68.95 | |
| 8 | 1703-787 | SPRING,SHOCK-SKI(120# X 12")-PTD PC GRN | 1 | $67.95 |
