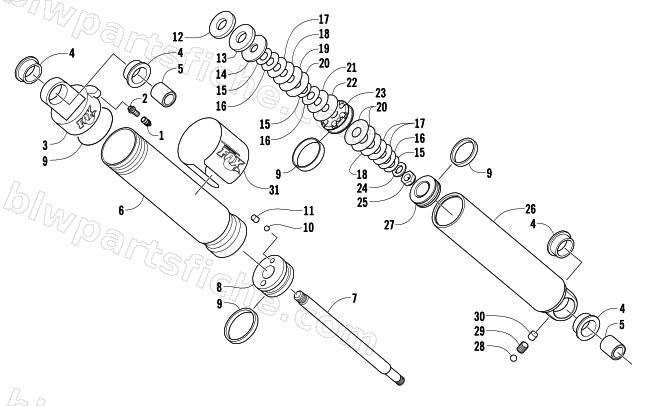

2006 Arctic Cat M7 EFI LE 162 CT — FRONT SUSPENSION SHOCK ABSORBER
2006 M7 EFI LE 162 CT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 4639-368 | S/M SYN SHOCK OIL MED WT-1 QUART | 1 | $27.95 | |
| 0 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 | |
| 0 | 2703-137 | SHOCK,SKI-FLOAT 17.55"-ASSY | 1 | $907.95 | |
| 1 | 2603-327 | CAP,VALVE-AIR - (FOX) | 1 | $12.35 | |
| 2 | 2603-326 | VALVE,AIR-ASSY - (FOX) | 1 | $24.95 | |
| 3 | 2603-418 | CAP,AIR SLEEVE-FLOAT ASSY | 1 | $181.95 | |
| 4 | 0603-955 | BUSHING, SKI SHOCK-.045" LIP | 1 | $9.59 | |
| 5 | 1603-209 | SLEEVE, EYELET - INNER - .790 TLG | 1 | $1.23 | |
| 6 | 2603-412 | SLEEVE,AIR-ASSY-8.415"-(FLOAT) | 1 | $306.95 | |
| 7 | 2603-416 | SHAFT,SHOCK-.498 X 8.850" | 1 | $143.95 | |
| 8 | 2603-333 | BEARING,ENDCAP- ASSY- 1.750 OD - (FLOAT) | 1 | $153.95 | |
| 9 | 2604-796 | KIT,REBUILD-SEAL/BEARING-FLOAT | 1 | $152.95 | |
| 10 | 1604-315 | BALL, BLEED | 1 | $4.95 | |
| 11 | 1603-940 | SCREW-SET,8-32X.250 | 1 | $1.95 | |
| 12 | 0603-386 | BUMPER,INTERNAL | 1 | $26.95 | |
| 13 | 2603-474 | SPACER,.504ID X 1.25OD X .250THK 6061AL | 1 | $29.95 | |
| 14 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 15 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 16 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 17 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 18 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 19 | 0603-345 | VALVE,1.250X.006(3/8ID) | 1 | $12.95 | |
| 20 | 0603-346 | VALVE,1.250X.008(3/8ID) | 1 | $6.95 | |
| 21 | 0603-342 | VALVE,1.100X.006(3/8ID) | 1 | $6.95 | |
| 22 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 23 | 2603-309 | PISTON,DAMPING-1.459 BORE-.093 ORIFICE | 1 | $34.95 | |
| 24 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 25 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 26 | 2603-414 | BODY,FLOAT SHOCK-8.825" | 1 | $447.95 | |
| 27 | 2603-417 | PISTON,IFP FLOAT-ASSY | 1 | $44.95 | |
| 28 | 2603-337 | BALL,AIR VALVE (.219 OD) - (FLOAT) | 1 | $7.16 | |
| 29 | 2603-338 | SCREW,SET-3/8-24 X .25" | 1 | $15.11 | |
| 30 | 1604-428 | PLUG, RUBBER - VALVE | 1 | $13.73 | |
| 31 | 2603-610 | DECAL,FOX FLOAT-2006 | 1 | $38.95 |
