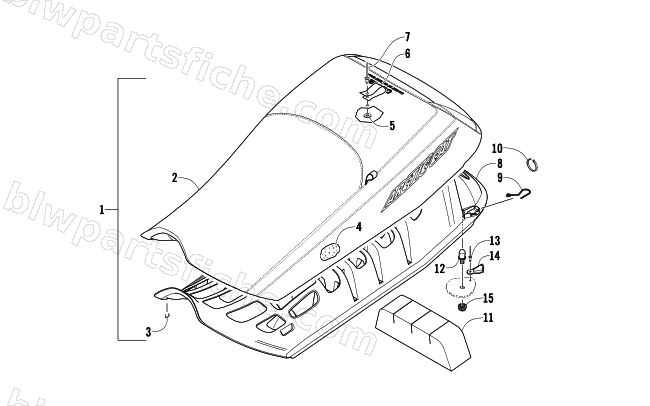

SEAT ASSEMBLY
2006 M7 EFI LE 162
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 7998-717 | SEAT,ORN (06 M-SERIES)-MFG ASSY | 1 | $567.95 | |
| 2 | 3706-097 | COVER,SEAT (06 M-SERIES)-ORN | 1 | $398.95 | |
| 3 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 4 | 2706-647 | FOAM,SEAT CUSHION-MC(89-94 ILD).48@4.95 | 1 | $117.95 | |
| 5 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 6 | 3606-813 | STRAP,HOLD-DOWN - SEAT BUN | 1 | $5.09 | |
| 7 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 8 | 4606-128 | SEATBASE-INJ MOLD | 1 | $142.95 | |
| 9 | 1623-393 | CLIP,RETAINING SPRING-SEAT | 1 | $6.95 | |
| 10 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 11 | 0617-512 | FOAM,COMPARTMENT-SEAT | 1 | $16.49 | |
| 12 | 1623-458 | STUD,LATCH-SEAT | 1 | $16.49 | |
| 13 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 14 | 4606-322 | COVER,LATCH-SEAT | 1 | $13.73 | |
| 15 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 |
