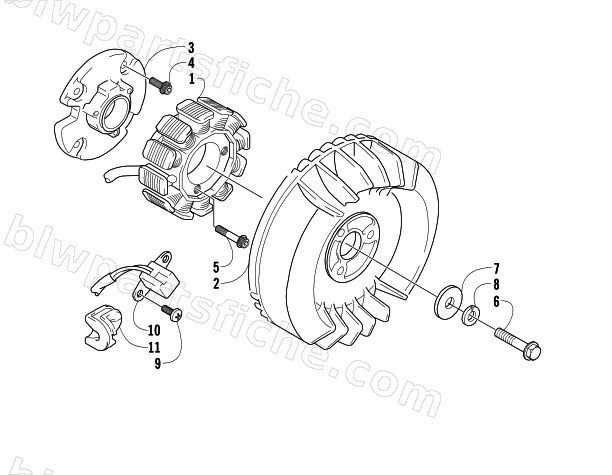

MAGNETO
2006 PANTHER 570
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-636 | STATOR | 1 | $1,030.95 | |
| 2 | 3006-467 | FLYWHEEL ASSY | 1 | $1,324.95 | |
| 3 | 3006-022 | BASE,STATOR | 1 | $156.95 | |
| 4 | 3007-449 | BOLT | 1 | $3.16 | |
| 5 | 3007-489 | BOLT | 1 | $3.16 | |
| 6 | 3006-476 | BOLT,M10X54 | 1 | $5.65 | |
| 7 | 3005-987 | WASHER | 1 | $5.95 | |
| 8 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 9 | 3007-553 | SCREW | 1 | $2.33 | |
| 10 | 3005-926 | SENSOR, IGNITION TIMING | 1 | $331.95 | |
| 11 | 3006-531 | GROMMET | 1 | $7.95 |
