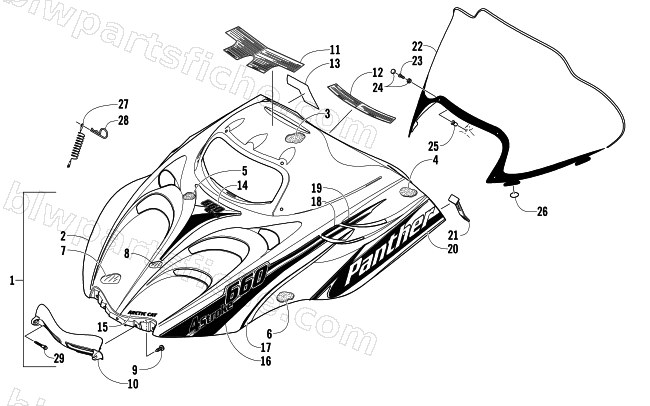

2006 Arctic Cat PANTHER 660 TOURING — HOOD AND WINDSHIELD ASSEMBLY
2006 PANTHER 660 TOURING
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-851 | HOOD W/DECALS-06 PA 660 | 1 | $1,601.95 | |
| 2 | 1718-852 | HOOD, W/O DECALS-06 PA 660 | 1 | $1,090.95 | |
| 3 | 0617-508 | FOAM, HOOD- MIDDLE UPR RH | 1 | $26.95 | |
| 4 | 0617-506 | FOAM, HOOD-UPR RH | 1 | $68.95 | |
| 4 | 0617-507 | FOAM, HOOD-UPR LH | 1 | $128.95 | |
| 5 | 0617-475 | FOAM,HOOD-MIDDLE | 1 | $15.11 | |
| 6 | 0617-326 | FOAM,HOOD-REAR RH | 1 | $17.95 | |
| 6 | 0617-327 | FOAM,HOOD-REAR LH | 1 | $29.95 | |
| 7 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 7 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 8 | 2606-935 | FOIL, PROTECTIVE-4 STROKE HOOD | 1 | $17.87 | |
| 9 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 10 | 1606-720 | HINGE, HOOD | 1 | $45.95 | |
| 11 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 12 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 13 | 3611-580 | DECAL,REVERSE | 1 | $25.95 | |
| 14 | 6611-828 | DECAL, HOOD-CREST-PANTHER 660 | 1 | $85.95 | |
| 15 | 6611-614 | DECAL, HOOD-"ARCTIC CAT"-PANTHER | 1 | $63.95 | |
| 16 | 6611-826 | DECAL, HOOD-FORWARD-"660"-RH | 1 | $76.95 | |
| 16 | 6611-827 | DECAL, HOOD-FORWARD-"660"-LH | 1 | $76.95 | |
| 17 | 6611-602 | DECAL, HOOD-CENTER-RH-PANTHER | 1 | $63.95 | |
| 17 | 6611-603 | DECAL, HOOD-CENTER-LH-PANTHER | 1 | $36.95 | |
| 18 | 6611-638 | DECAL, HOOD-VENT-CENTER-RH-PANTHER | 1 | $14.95 | |
| 18 | 6611-639 | DECAL, HOOD-VENT-CENTER-LH-PANTHER | 1 | $102.95 | |
| 19 | 6611-640 | DECAL, HOOD-VENT-REAR-RH-PANTHER | 1 | $102.95 | |
| 19 | 6611-641 | DECAL, HOOD-VENT-REAR-LH-PANTHER | 1 | $93.95 | |
| 20 | 6611-604 | DECAL, HOOD-LOWER-RH-"PANTHER" | 1 | $85.95 | |
| 20 | 6611-605 | DECAL, HOOD-LOWER-LH-"PANTHER" | 1 | $85.95 | |
| 21 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 22 | 2606-432 | WINDSHIELD, SMOKE (MED) | 1 | $200.95 | |
| 23 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 24 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 25 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 26 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 27 | 3606-746 | CABLE, HOOD-37" | 1 | $14.95 | |
| 29 | 1623-016 | SCREW, HEX DOME HEAD -1/4-20 x1.24 Z&Y | 1 | $27.95 |
