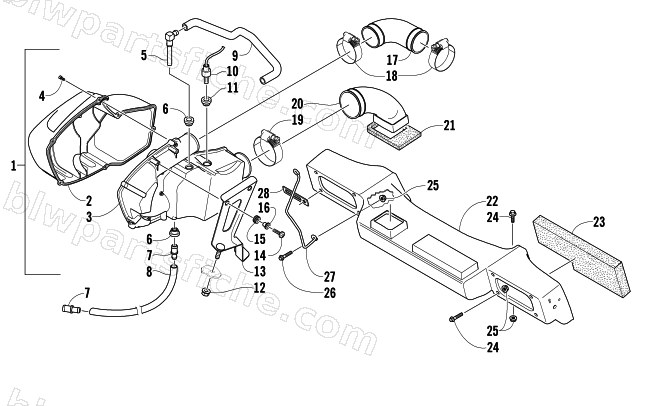

2006 Arctic Cat PANTHER 660 TRAIL — AIR SILENCER ASSEMBLY
2006 PANTHER 660 TRAIL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-605 | AIR SILENCER-ASSY-03 BCWT 4STROKE | 1 | $191.95 | |
| 2 | 1670-434 | SILENCER, AIR-OUTER COVER | 1 | $132.95 | |
| 3 | 0770-621 | SILENCER, INNER COVER ASSY | 1 | $169.95 | |
| 4 | 8019-397 | SCREW,MACH-TSPNH 10-24 X 1/2 GR2 Z&Y | 1 | $0.95 | |
| 5 | 1670-515 | FITTING, ELBOW-PLASTIC | 1 | $13.95 | |
| 6 | 1670-507 | GROMMET, FITTING | 1 | $5.95 | |
| 7 | 1670-516 | FITTING, STRAIGHT-PLASTIC | 1 | $9.95 | |
| 8 | 0610-529 | HOSE, DRAIN-1/2" | 1 | $22.01 | |
| 9 | 0610-489 | HOSE, BREATHER | 1 | $43.95 | |
| 10 | 3006-656 | SENSOR, AIR TEMP | 1 | $198.95 | |
| 11 | 3006-657 | GROMMET,AIR TEMP SENSOR | 1 | $16.95 | |
| 12 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 13 | 0707-737 | BRKT, SILENCER MTG-PTD | 1 | $68.95 | |
| 14 | 1623-135 | SCREW,PLASTITE-PHPNH 1/4-10X1.0 Z&Y | 1 | $1.37 | |
| 15 | 1670-545 | ISOLATOR, RUBBER | 1 | $1.95 | |
| 16 | 0607-737 | BUSHING - 3/8 OD X .281 ID W/FLANGE | 1 | $20.95 | |
| 17 | 0610-491 | HOSE, OUTLET | 1 | $60.95 | |
| 19 | 0214-032 | CLAMP,HOSE #44 | 1 | $7.95 | |
| 20 | 0610-490 | HOSE, INLET-FORMED | 1 | $109.95 | |
| 21 | 0617-410 | SEAL, AIRBOX,/PLENUM | 1 | $3.95 | |
| 22 | 1670-432 | PLENUM, AIR SILENCER-ROUTED | 1 | $92.95 | |
| 23 | 0617-270 | FOAM,PLENUM-INTAKE | 1 | $12.35 | |
| 24 | 8020-039 | SCREW,CAP-HFH 1/4-20 X 0.625 Z&Y | 1 | $0.95 | |
| 25 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 26 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 27 | 0707-705 | WIREFORM, GUIDE-HARNESS/ROPE-PTD BLK | 1 | $16.49 | |
| 28 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 |
