2006 Arctic Cat SABERCAT 500 EFI LX — CONSOLE AND SWITCH ASSEMBLY

2006 SABERCAT 500 EFI LX

Scroll / pinch to zoom · drag to pan · double-click resets

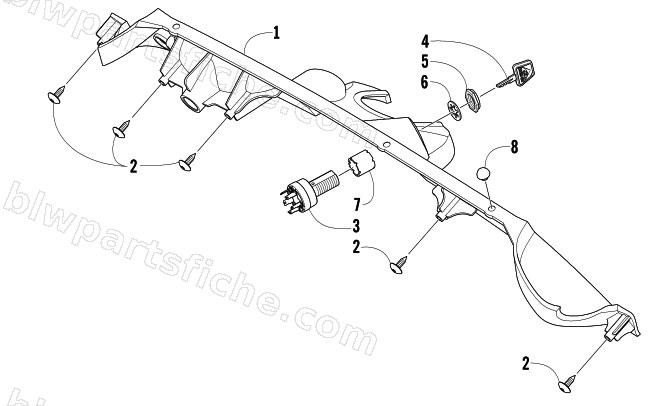

CONSOLE AND SWITCH ASSEMBLY diagram
# Part No. Description Qty Price
1 2706-252 CONSOLE, EFI LX-ROUTED 1 $71.95
2 1623-129 R/B 2623-166 1 $0.35
3 0609-449 SWITCH,IGN-MULTI KEY 1 $56.95
5 0609-113 NUT,RETAINING 13/16-20 BLACK PLASTIC 1 $1.50
6 0123-899 WASHER,IGNITION 1 $0.95
8 1612-287 BUMPER,MOLDED-RUBBER(CHASSIS) 1 $3.16
