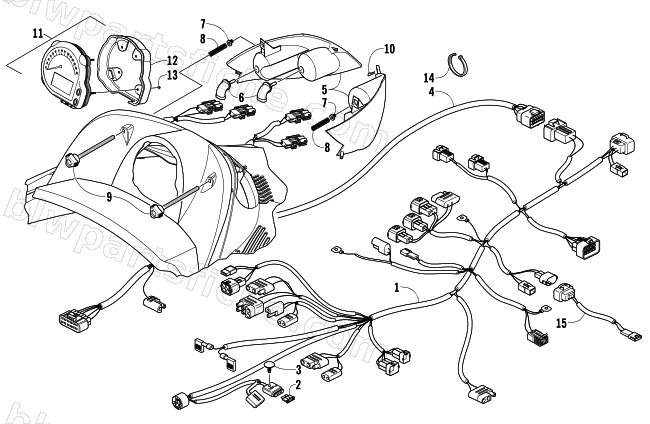

2006 Arctic Cat SABERCAT 500 EFI LX — HEADLIGHT, INSTRUMENTS, AND WIRING ASSEMBLIES
2006 SABERCAT 500 EFI LX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1686-260 | HARNESS,MAIN(06 SC 500 LX PROD) | 1 | $438.95 | |
| 2 | 0630-100 | FUSE, 7 1/2 AMP ATO/ATC | 1 | $5.95 | |
| 3 | 0623-589 | CLIP,RETAINING-.191X.700 | 1 | $2.75 | |
| 4 | 1686-247 | HARNESS,HOOD-06 SABERCAT-9T SINGLE PULSE | 1 | $259.95 | |
| 5 | 0609-530 | HEADLIGHT,RH-ASSY | 1 | $183.95 | |
| 5 | 0609-531 | HEADLIGHT,LH-ASSY | 1 | $183.95 | |
| 6 | 0609-251 | BULB, (GE 894)HEADLIGHT-HIGH BEAM | 1 | $29.95 | |
| 7 | 1623-025 | GROMMET,SCREW-PLASTIC | 1 | $0.95 | |
| 8 | 0623-360 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $15.11 | |
| 9 | 1623-024 | SCREW,ADJUSTMENT | 1 | $5.95 | |
| 10 | 1623-137 | CLIP,HAIRPIN | 1 | $0.95 | |
| 11 | 0620-292 | SPEEDO/TACH-DIGITAL-BLK(4 CAL) | 1 | $773.95 | |
| 12 | 0620-281 | BRKT,RETAINING-SPEEDO/TACH | 1 | $52.95 | |
| 13 | 0620-280 | NUT,W/WASHER | 1 | $13.73 | |
| 14 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 15 | 1686-173 | HARNESS,ADAPTER-WATER TEMP SENSOR | 1 | $34.95 |
