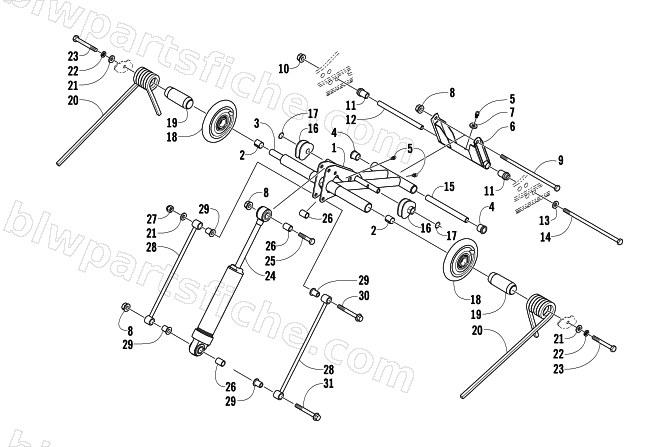

REAR SUSPENSION REAR ARM ASSEMBLY
2006 SABERCAT 500 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-455 | ARM,IDLER-FAB | 1 | $212.95 | |
| 2 | 3604-095 | BEARING,14DU16 | 1 | $5.09 | |
| 3 | 3604-096 | AXLE,INNER CARRIAGE | 1 | $48.95 | |
| 4 | 1604-100 | BUSHING,FLARED-BRONZE (.628 ID) | 1 | $6.75 | |
| 5 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 6 | 1704-019 | ARM, REAR-MACH-BLK (04 PROD) | 1 | $56.95 | |
| 7 | 1623-011 | WASHER- GREASE FITTING | 1 | $0.68 | |
| 8 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 9 | 1623-086 | SCREW,CAP-3/8-16 X 7.500 | 1 | $20.63 | |
| 10 | 8047-490 | NUT,HEX FLG-NY LOCK 3/8-16 GR G Z&Y | 1 | $0.95 | |
| 11 | 2604-664 | BUSHING,REAR ARM-PWD METAL | 1 | $53.95 | |
| 12 | 2604-663 | AXLE,REAR ARM-INNER-6.124" | 1 | $16.49 | |
| 13 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 14 | 1623-037 | SCREW, CAP-HH 3/8-16X10 GD 8 Z&Y | 1 | $6.47 | |
| 15 | 2604-370 | AXLE,STEEL-.624X6.817 | 1 | $22.01 | |
| 16 | 1604-204 | BLOCK,SPRING-ADJUSTER-RH | 1 | $19.25 | |
| 16 | 1604-205 | BLOCK,SPRING-ADJUSTER-LH | 1 | $19.25 | |
| 17 | 0623-138 | RING,RETAINING-ADJ BLOCK 9/16 | 1 | $0.68 | |
| 18 | 2604-992 | WHEEL, IDLER-5.35 W/30mm | 1 | $54.95 | |
| 19 | 2604-993 | SLEEVE, SPRING-1.75" OD | 1 | $17.95 | |
| 20 | 0704-926 | SPRING,SUSPENSION-RH PTD BLK | 1 | $163.95 | |
| 20 | 0704-927 | SPRING,SUSPENSION-LH PTD BLK | 1 | $163.95 | |
| 21 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 22 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 24 | 1704-454 | SHOCK,REAR ARM-ZERO PRO | 1 | $446.95 | |
| 25 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 26 | 1604-139 | SLEEVE,SHOCK EYELET-POWDER METAL | 1 | $2.06 | |
| 27 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 28 | 0704-361 | LINK,REAR SHOCK-PTD BLK | 1 | $27.95 | |
| 30 | 1623-219 | SCREW,CAP-HFH 3/8-16X3.570 GR 5 Z&Y | 1 | $3.44 | |
| 31 | 8020-234 | SCREW,CAP-HFH 3/8-16 X 4.00 Z&Y | 1 | $6.89 |
