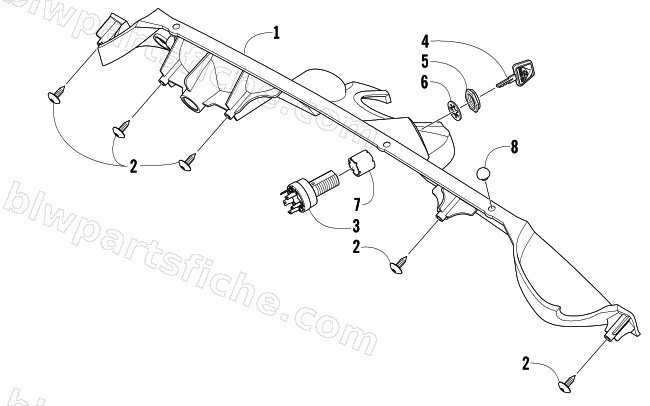

2006 Arctic Cat SABERCAT 600 EFI LX — CONSOLE AND SWITCH ASSEMBLY
2006 SABERCAT 600 EFI LX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2706-252 | CONSOLE, EFI LX-ROUTED | 1 | $71.95 | |
| 2 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 3 | 0609-449 | SWITCH,IGN-MULTI KEY | 1 | $56.95 | |
| 5 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 | |
| 6 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 8 | 1612-287 | BUMPER,MOLDED-RUBBER(CHASSIS) | 1 | $3.16 |
