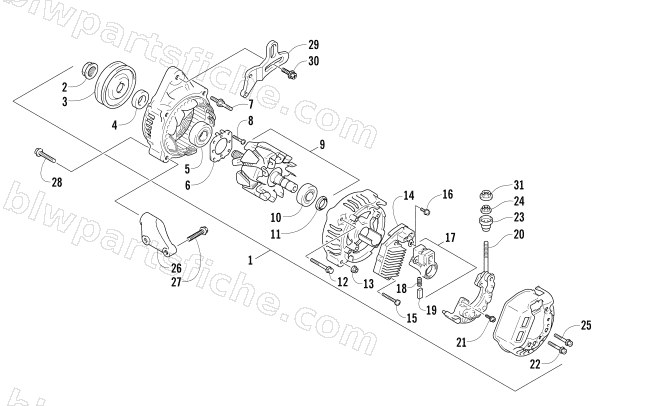

ALTERNATOR ASSEMBLY
2006 T660 TOURING
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-261 | GENERATOR ASSY,02 660 L/C | 1 | $3,168.95 | |
| 2 | 3006-276 | NUT,'02 660 L/C | 1 | $13.95 | |
| 3 | 3006-250 | PULLEY,2 660 L/C | 1 | $180.95 | |
| 4 | 3006-277 | SPACER, '02 660 L/C | 1 | $84.95 | |
| 5 | 3006-263 | BEARING,'02 660 L/C | 1 | $102.95 | |
| 6 | 3006-264 | RETAINER,BEARING '02 660 L/C | 1 | $41.95 | |
| 7 | 3006-266 | STUD BOLT,'02 660 L/C | 1 | $56.95 | |
| 8 | 3006-265 | SCREW,'02 660 L/C | 1 | $3.95 | |
| 9 | 3006-610 | ROTOR ASSY | 1 | $950.95 | |
| 10 | 3006-267 | BALL BEARING, GENERATOR '02 660 L/C | 1 | $165.95 | |
| 11 | 3006-268 | COVER,BEARING '02 660 L/C | 1 | $23.39 | |
| 12 | 3006-272 | BOLT,02 660 L/C | 1 | $6.95 | |
| 13 | 3007-572 | NUT,5MM | 1 | $2.47 | |
| 14 | 3006-841 | REGULATOR ASS'Y,GENERATOR-'04 660 L/C TU | 1 | $646.95 | |
| 15 | 3004-379 | SCREW,M4X25 | 1 | $3.85 | |
| 16 | 0694-025 | SCREW | 1 | $1.78 | |
| 17 | 3006-612 | HOLDER ASSY,BRUSH | 1 | $132.95 | |
| 18 | 3006-271 | SPRING,GENERATOR BRUSH ' 02 660 L/C | 1 | $16.49 | |
| 19 | 3006-270 | BRUSH,GENERATOR '02 660 L/C | 1 | $33.95 | |
| 20 | 3006-611 | RECTIFIRE ASSY | 1 | $627.95 | |
| 21 | 3007-690 | SCREW,M4X6 | 1 | $2.47 | |
| 22 | 3006-274 | BOLT,02 660 L/C | 1 | $10.97 | |
| 23 | 3006-262 | INSULATOR,TERMINAL 02 660 L/C | 1 | $25.95 | |
| 24 | 3007-703 | NUT,6MM | 1 | $3.85 | |
| 25 | 3006-613 | BOLT | 1 | $19.25 | |
| 26 | 3006-144 | BRACKET,GENERATOR-LOWER '02 660 L/C | 1 | $121.95 | |
| 27 | 0693-397 | BOLT,M8X35 | 1 | $7.95 | |
| 28 | 3006-376 | BOLT,660L/C | 1 | $3.95 | |
| 29 | 3006-143 | ARM,ALT BELT ADJ '02 660 L/C | 1 | $66.95 | |
| 30 | 3006-108 | BOLT,8X25-W/LK & PL WSHR-7T-ZN '02 660 L | 1 | $13.73 | |
| 31 | 3007-373 | NUT | 1 | $3.16 |
