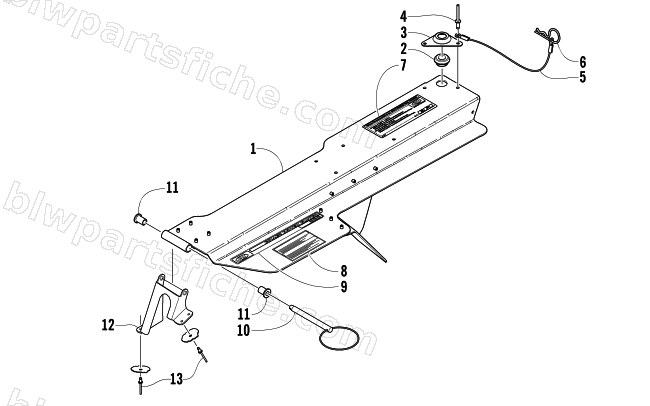

BELT GUARD ASSEMBLY
2006 T660 TURBO ST
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-574 | GUARD - ASSY - W/GROMMET (2002 560) | 1 | $113.95 | |
| 2 | 0607-549 | BUSHING, BELT GUARD | 1 | $3.02 | |
| 3 | 0607-550 | PLATE, BUSHING-BELT GUARD-PTD BLK | 1 | $12.95 | |
| 4 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 5 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 6 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 7 | 7611-149 | DECAL, CLUTCHING -06 AC T660 TURBO | 1 | $29.95 | |
| 8 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 9 | 3611-969 | DECAL, "ACT-ROLLER DRIVEN CLUTCH" | 1 | $89.95 | |
| 10 | 1623-012 | PIN, CLUTCH GUARD | 1 | $15.11 | |
| 11 | 0607-094 | INSERT,HINGE-GUARD | 1 | $0.95 | |
| 12 | 0707-707 | BRKT, MTG - GUARD-PTD BLK | 1 | $37.95 | |
| 13 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 |
