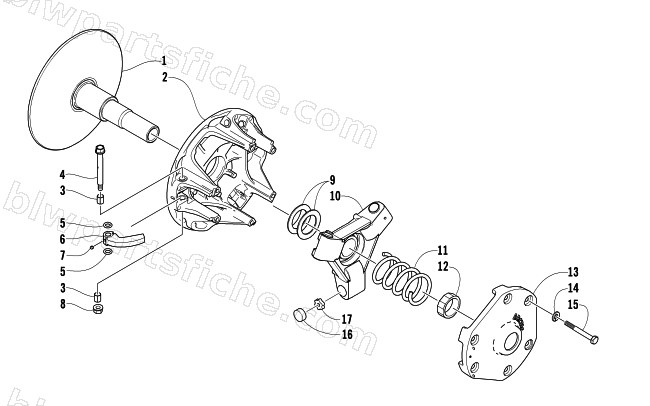

2006 Arctic Cat T660 TURBO TOURING LE — DRIVE CLUTCH
2006 T660 TURBO TOURING LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0746-778 | CLUTCH,DRIVE-UNCAL | 1 | $971.95 | |
| 0 | 4639-674 | KIT,CAM ARM REPAIR '05-'09(WIDE) | 1 | $58.95 | |
| 1 | 0746-764 | SHEAVE, STATIONARY 8.25-MACH | 1 | $319.95 | |
| 2 | 0746-756 | SHEAVE, MOVEABLE 8.25-ASSY | 1 | $206.95 | |
| 3 | 0646-372 | BEARING,CAM ARM PIN (05DP08) | 1 | $1.37 | |
| 4 | 0646-747 | PIN, CAM ARM | 1 | $17.87 | |
| 5 | 1602-692 | O-RING, 5/16 X 1/2 X 3/32 - VITON | 1 | $0.68 | |
| 6 | 0746-671 | ARM,CAM-WIDE-P1-70 GRAM W/SET SCREW | 1 | $13.73 | |
| 7 | 1623-183 | SCREW,SET-CUP PT W/THD LOC-8-32X3/16 | 1 | $1.64 | |
| 8 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 9 | 0646-377 | SPACER, CLUTCH-SPIDER | 1 | $35.95 | |
| 9 | 0646-266 | WASHER,SPACER-CLUTCH (.030) | 1 | $1.23 | |
| 10 | 0746-686 | SPIDER ASSY-MACH (4 STROKE) | 1 | $331.95 | |
| 11 | 0646-149 | SPRING,CLUTCH-RED | 1 | $57.95 | |
| 11 | 0646-147 | SPRING,CLUTCH-YELLOW/GREEN | 1 | $54.95 | |
| 12 | 0646-140 | NUT,JAM-SPIDER | 1 | $17.95 | |
| 13 | 0746-113 | COVER, DRIVE CLUTCH-ASSY (6 POST) | 1 | $99.95 | |
| 14 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 15 | 1623-442 | SCREW, CAP-HH 1/4-20X2.50 GD 8 | 1 | $1.23 | |
| 16 | 0646-297 | BUTTON, TORQUE | 1 | $14.95 | |
| 17 | 0646-298 | PLUG,TORQUE BUTTON | 1 | $2.88 |
