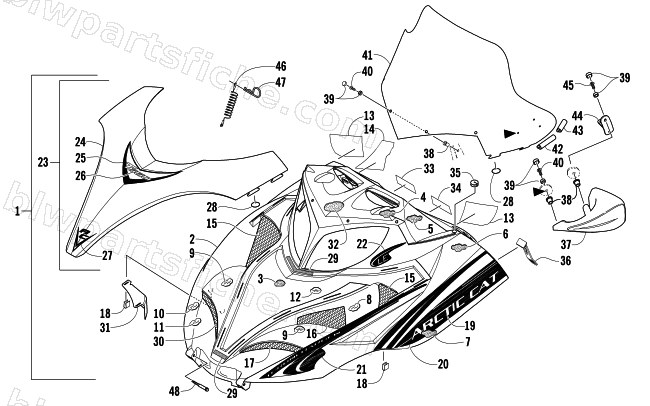

2006 Arctic Cat T660 TURBO TOURING LE — HOOD AND WINDSHIELD ASSEMBLY
2006 T660 TURBO TOURING LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-925 | HOOD W/ DECALS-T660 PROD LE-BLK | 1 | $1,501.95 | |
| 1 | 1718-862 | HOOD W/ DECALS-T660 SILVER | 1 | $1,501.95 | |
| 2 | 1718-924 | HOOD, W/O DECALS-T660 PROD LE BLK | 1 | $1,090.95 | |
| 2 | 1718-861 | HOOD W/O DECALS-T660 SILVER | 1 | $1,090.95 | |
| 3 | 0717-183 | FOAM,HOOD-MIDDLE (TURBO) | 1 | $169.95 | |
| 4 | 0717-186 | FOAM,HOOD-RH-GUAGE(TURBO) | 1 | $9.59 | |
| 5 | 0717-190 | FOAM, HOOD-RH,OUTER GUAGE (TURBO) | 1 | $15.11 | |
| 5 | 0717-191 | FOAM, HOOD-LH,OUTER-GUAGE (TURBO) | 1 | $160.95 | |
| 6 | 0717-188 | FOAM, HOOD-RH-REAR SIDE (TURBO) | 1 | $156.95 | |
| 6 | 0717-189 | FOAM, HOOD-LH-REAR SIDE (TURBO) | 1 | $4.95 | |
| 7 | 0717-184 | FOAM,HOOD-RH SIDE(TURBO) | 1 | $22.01 | |
| 7 | 0717-185 | FOAM,HOOD-LH SIDE(TURBO) | 1 | $22.01 | |
| 8 | 3606-375 | FOIL, HOOD, LH, SIDE, UPPER | 1 | $14.95 | |
| 9 | 3606-372 | FOIL, HOOD, RH, UPPER | 1 | $9.95 | |
| 9 | 3606-373 | FOIL, HOOD, LH, UPPER | 1 | $5.95 | |
| 10 | 2606-556 | FOIL, PROTECTIVE,3" X 6" | 1 | $2.61 | |
| 11 | 3606-374 | FOIL, HOOD, RH, LOWER | 1 | $26.95 | |
| 12 | 3606-376 | FOIL, HOOD, UPPER | 1 | $24.77 | |
| 13 | 5611-840 | DECAL, WARNING-T660-ENGLISH | 1 | $27.95 | |
| 13 | 5611-841 | DECAL, WARNING-T660-FRENCH | 1 | $37.95 | |
| 14 | 7611-151 | DECAL, CAUTION/WARNING-REV/BREAK-IN | 1 | $25.95 | |
| 15 | 3606-236 | SCREEN, VENT-HOOD-RH REAR-MOLDED-BLK | 1 | $113.95 | |
| 15 | 3606-237 | SCREEN, VENT-HOOD-LH REAR-MOLDED-BLK | 1 | $122.95 | |
| 16 | 4606-161 | SCREEN, VENT-HOOD-LH/MIDDLE-TURBO-BLK | 1 | $82.95 | |
| 17 | 3606-235 | SCREEN, VENT-HOOD-LH FRT-MOLDED-BLK | 1 | $75.95 | |
| 18 | 0123-987 | CLIP,U-TYPE | 1 | $0.68 | |
| 19 | 6611-805 | EMBLEM, CHROME, HOOD, SIDE-T660 | 1 | $79.95 | |
| 20 | 6611-808 | DECAL, HOOD, LOWER-RH-T660-BLACK | 1 | $97.95 | |
| 20 | 6611-809 | DECAL, HOOD, LOWER-LH-T660-BLACK | 1 | $89.95 | |
| 20 | 6611-794 | DECAL, HOOD, LOWER-RH-T660-SILVER | 1 | $28.95 | |
| 20 | 6611-795 | DECAL, HOOD, LOWER-LH-T660-SILVER | 1 | $28.95 | |
| 21 | 6611-806 | DECAL, HOOD, UPPER-RH-TURBO-BLACK | 1 | $52.95 | |
| 21 | 6611-807 | DECAL, HOOD, UPPER-LH-TURBO-BLACK | 1 | $52.95 | |
| 21 | 6611-792 | DECAL, HOOD, UPPER-RH-T660-SILVER | 1 | $48.95 | |
| 21 | 6611-793 | DECAL, HOOD, UPPER-LH-T660-SILVER | 1 | $50.95 | |
| 22 | 7611-038 | DECAL, HOOD, LE-RH-T660-BLK | 1 | $33.95 | |
| 22 | 7611-039 | DECAL, HOOD, LE-LH-T660-BLK | 1 | $33.95 | |
| 22 | 7611-036 | DECAL, HOOD, LE-RH-T660-SILVER | 1 | $33.95 | |
| 22 | 7611-037 | DECAL, HOOD, LE-LH-T660-SILVER | 1 | $33.95 | |
| 23 | 1718-865 | COVER, HOOD W/DECALS-T660 | 1 | $285.95 | |
| 23 | 1718-863 | COVER, HOOD W/DECALS | 1 | $317.95 | |
| 24 | 3606-253 | COVER, HOOD-PTD BLK | 1 | $773.95 | |
| 24 | 4606-070 | COVER, HOOD-PTD PLATINUM | 1 | $165.95 | |
| 25 | 6611-815 | DECAL, HOOD, CREST-T660 1-UP-BLACK | 1 | $32.95 | |
| 25 | 6611-802 | DECAL, HOOD, CREST-T660-SILVER | 1 | $34.95 | |
| 26 | 6611-822 | EMBLEM, CHROME-FRONT-T660 | 1 | $49.95 | |
| 27 | 6611-261 | EMBLEM,CHROME/BLUE FRT(TURBO ST) | 1 | $197.95 | |
| 28 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 29 | 0619-946 | TAPE,DOUBLE COATED-ACYLIC FOAM(1'LENGTH) | 1 | $37.95 | |
| 30 | 3606-234 | SCREEN, VENT-HOOD-RH/FRT-MOLDED-BLK | 1 | $117.95 | |
| 31 | 1670-550 | DEFLECTOR, AIR INTAKE | 1 | $20.63 | |
| 32 | 0717-192 | FOAM, HOOD-HEADLIGHT-CENTER (TURBO) | 1 | $14.95 | |
| 33 | 7611-194 | DECAL, CAT COMM-BLK | 1 | $15.11 | |
| 33 | 7611-171 | DECAL, CAT COMM | 1 | $64.95 | |
| 34 | 7611-165 | EMBLEM, CHROME, HOOD-TURBO LE | 1 | $87.95 | |
| 35 | 4606-143 | GROMMET, RUBBER-RADIO-T660 LE | 1 | $2.95 | |
| 36 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 38 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 39 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 40 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 41 | 3606-408 | WINDSHIELD, HIGH-T660 BLK | 1 | $232.95 | |
| 41 | 4606-078 | WINDSHIELD, HIGH-T660 LE | 1 | $166.95 | |
| 42 | 1623-519 | CLIP, PLASTIC WIRE-RADIO-3" | 1 | $5.95 | |
| 43 | 1623-518 | CLIP, PLASTIC WIRE-RADIO-1" | 1 | $16.95 | |
| 44 | 0630-204 | MOUNT, ANTENNA-RADIO/COMM | 1 | $6.95 | |
| 45 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 46 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 48 | 1623-164 | SCREW, SHOULDER-HOOD HINGE (T660) | 1 | $6.89 |
