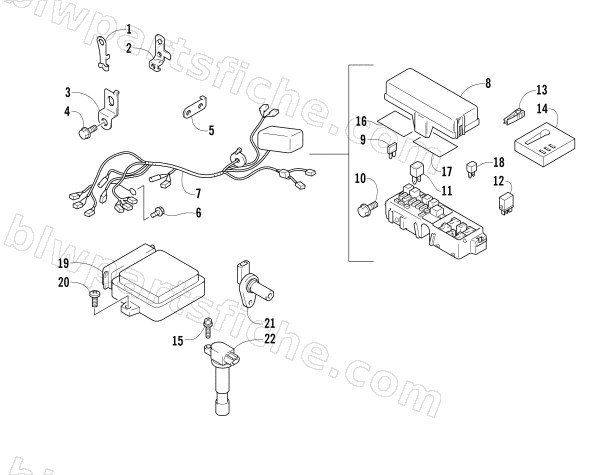

ELECTRICAL
2006 T660 TURBO TOURING
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-290 | CLAMP,OIL P SW '02 660 L/C | 1 | $17.87 | |
| 2 | 3006-287 | BRACKET,ENGINE HARN '02 660 L/C | 1 | $19.95 | |
| 3 | 3006-609 | BRACKET,COIL | 1 | $6.47 | |
| 4 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 5 | 3006-284 | BRACKET,ENGINE HARN '02 660 L/C | 1 | $20.63 | |
| 6 | 3007-407 | BOLT,GROUND | 1 | $3.16 | |
| 7 | 3007-035 | HARNESS ASSY-660 TURBO | 1 | $1,047.95 | |
| 8 | 3006-288 | COVER,FUSE BOX '02 660 L/C | 1 | $27.95 | |
| 9 | 3006-368 | FUSE,15 AMP 660 L/C | 1 | $6.34 | |
| 9 | 3006-369 | FUSE,30 AMP 660 L/C | 1 | $8.21 | |
| 10 | 3006-109 | BOLT,6X10 '02 660 L/C | 1 | $3.95 | |
| 11 | 3006-370 | FUSE,80A 660L/C | 1 | $38.95 | |
| 12 | 0630-286 | RELAY,SPST-4P 12V/35A | 1 | $27.95 | |
| 13 | 3006-607 | PICK,FUSE | 1 | $5.09 | |
| 14 | 3006-608 | HOLDER,SPARE FUSE | 1 | $24.95 | |
| 15 | 3006-756 | BOLT 6X23 | 1 | $2.95 | |
| 16 | 5611-859 | DECAL, FUSE BOX DIA | 1 | $17.95 | |
| 17 | 5611-860 | DECAL, FUSE BOX DIA-RELAY | 1 | $17.95 | |
| 19 | 3006-963 | CONTROLLER ASSY,EPI(660 TURBO) | 1 | $2,511.95 | |
| 20 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 21 | 3006-279 | SENSOR ASSY, CAM POSITION '02 660 L/C | 1 | $355.95 | |
| 22 | 3007-590 | COIL ASSY,IGNITION | 1 | $252.95 |
