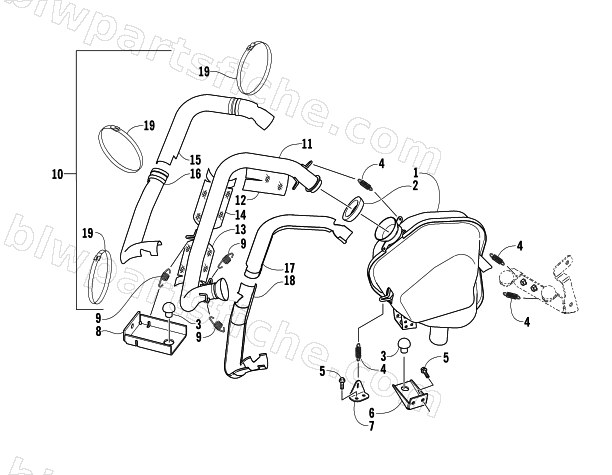

EXHAUST ASSEMBLY
2006 T660 TURBO TOURING
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1712-171 | RESONATOR, EXHAUST-ASSY | 1 | $632.95 | |
| 2 | 1612-323 | GASKET, EXH,TAIL PIPE | 1 | $29.95 | |
| 3 | 0612-111 | BUMPER,MOLDED-RUBBER | 1 | $16.49 | |
| 4 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 5 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 6 | 1712-038 | BRKT,RESONATOR MTG-PTD | 1 | $22.01 | |
| 7 | 1612-763 | BRKT,SPRING RETAINING-PTD | 1 | $15.11 | |
| 8 | 1712-046 | BRKT, EXHAUST-PTD BLK | 1 | $22.01 | |
| 9 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 10 | 1712-048 | PIPE, EXHAUST-MFG ASSY | 1 | $477.95 | |
| 11 | 1712-006 | IPE, EXHAUST-WELD'T | 1 | $223.95 | |
| 12 | 1612-818 | PACKING, EXHAUST PIPE-RH | 1 | $1.92 | |
| 13 | 1612-819 | PACKING, EXHAUST PIPE-LH | 1 | $3.44 | |
| 14 | 1612-820 | PACKING, EXHAUST PIPE-CTR | 1 | $4.26 | |
| 15 | 1612-768 | COVER, PIPE-UPR RH | 1 | $90.95 | |
| 16 | 1612-769 | COVER, PIPE-UPR LH | 1 | $108.95 | |
| 17 | 1612-770 | COVER, PIPE-LWR RH | 1 | $93.95 | |
| 18 | 1612-771 | COVER, PIPE-LWR LH | 1 | $108.95 | |
| 19 | 1623-140 | TIE-LOK TIE-.020X3/8X10.00" | 1 | $12.35 |
