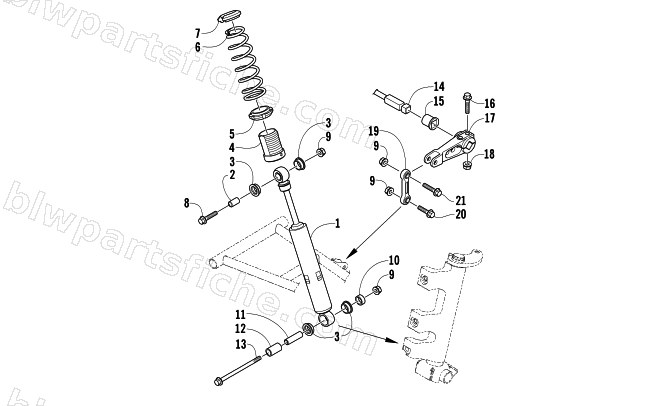

2006 Arctic Cat T660 TURBO TOURING — SHOCK ABSORBER AND SWAY BAR ASSEMBLY
2006 T660 TURBO TOURING
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1603-175 | SHOCK,SKI | 1 | $252.95 | |
| 2 | 0604-309 | SLEEVE,SHOCK ABSORBER | 1 | $2.33 | |
| 3 | 0604-310 | BUSHING,SHOCK ABSORBER | 1 | $6.75 | |
| 4 | 0603-147 | SLEEVE,THREADED-SHOCK | 1 | $60.95 | |
| 5 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 | |
| 6 | 2703-022 | SPRING, SKI-PTD PLATINUM 10.75/120LB | 1 | $78.95 | |
| 6 | 0703-872 | SPRING, SKI -PLATINUM | 1 | $65.95 | |
| 7 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 8 | 8020-226 | SCREW,CAP-HFH 3/8-16 X 1.75 Z&Y | 1 | $2.95 | |
| 9 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 10 | 0603-855 | SPACER, SHOCK MTG - REAR | 1 | $3.99 | |
| 11 | 1604-184 | SLEEVE, SHOCK ABSORBER | 1 | $42.95 | |
| 12 | 0603-854 | SPACER, SHOCK MTG - FRT | 1 | $13.73 | |
| 13 | 8020-234 | SCREW,CAP-HFH 3/8-16 X 4.00 Z&Y | 1 | $6.89 | |
| 14 | 1703-618 | SWAY BAR,7/16 DIA X 28.72"-PTD BLK | 1 | $133.95 | |
| 14 | 0703-194 | SWAY BAR, 5/8 - SQUARE-PAINTED | 1 | $156.95 | |
| 15 | 0603-151 | BEARING,SWAY BAR-SQUARE | 1 | $23.39 | |
| 16 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 | |
| 16 | 8020-137 | SCREW,CAP-HFH 5/16-18 X 2.00 G5 Z&Y | 1 | $1.23 | |
| 17 | 2603-307 | ARM, SWAY BAR-W/INSERT | 1 | $110.95 | |
| 17 | 0603-558 | ARM,SWAYBAR-PTD BLK | 1 | $78.95 | |
| 18 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 19 | 1603-414 | LINK, SWAY BAR, FIXED (PLASTIC) | 1 | $37.95 | |
| 19 | 1603-002 | LINK,SWAY BAR | 1 | $54.95 | |
| 20 | 8020-225 | SCREW,CAP-HFH 3/8-16 X 1.50 Z&Y | 1 | $1.78 |
